STANDARD MATERIALS

NOTE

1) Forged Stainless Steel, ASTM A351-CF8(M)

SPECIFICATIONS

1) Valve Size : 1/2" ~ 24"
2) Applicable Rating : ASME 150# ~ 2500#, KS 10K ~ 40K
3) Temperature : Down to -196℃
4) Code & Standard : BS, ASME, ASTM, KGSC
    Designed by BS6364, ASME B16.34, and ASME B16.11/16.5
5) Allowable Seat Leakage : ASME Class Ⅲ, Ⅳ, Ⅴ, Ⅵ, BS6364
6) Constructions
   - End Connection : Socket-Welded, Butt-Welded, or Flanged Type

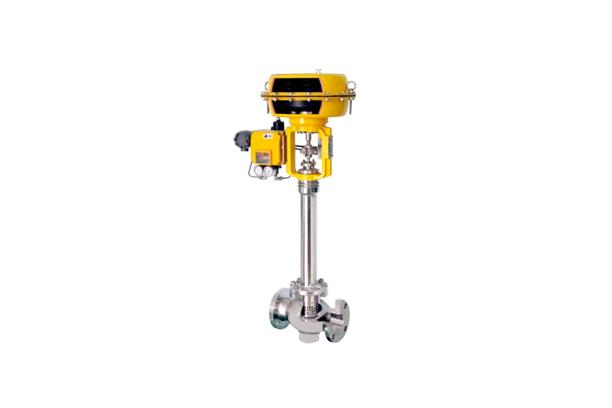

   - Long Extended Bonnet
   - Actuator : Cylinder or Diaphragm Type
   - Quick Change Typed Trim
