제품명

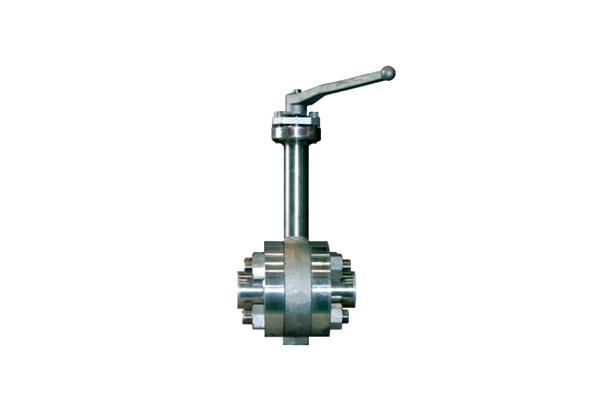

CRYOGENIC VALVES
모델명
THREE-PIECE BALL VALVES (D1, E1)
사이즈
-
중량
-
제품 상세 정보
STANDARD MATERIALS
| PART NAMES | MATERIALS |
|---|---|
| BODY | NOTE 1) |
| BONNET | NOTE 1) |
| SEAT | SOFT-PCTFE & GRAPHITE |
| BALL | ASTM A276-304 / 316 or A351-CF8(M) |
| STEM | ASTM A276-304 / 316 |
| CONNECTOR | NOTE 1) |
| BONNET BOLT | ASTM A320 B8M CL.2 |
| GLAND PACKING | GRAPHITE |
| GLAND | ASTM A276-316 |
NOTE
1) ASTM A182-F304(L), F316(L)
SPECIFICATIONS
1) Valve Size : 1/2" ~ 2"
2) Applicable Rating : ASME 150# ~ 2500#
3) Temperature : Down to -196℃
4) Code & Standard : API, BS, ASME, ASTM, KGSC
5) Constructions
- End Connection : Socket-Welded, Butt-Welded or Flanged Type
- Extended Bonnet
- Floating Ball, Full Bore
- Fire Safety Construction (Certified by TÜV)
- Manual or Motor Operated
(Pneumatic, Electric, or Hydraulic)
