제품명

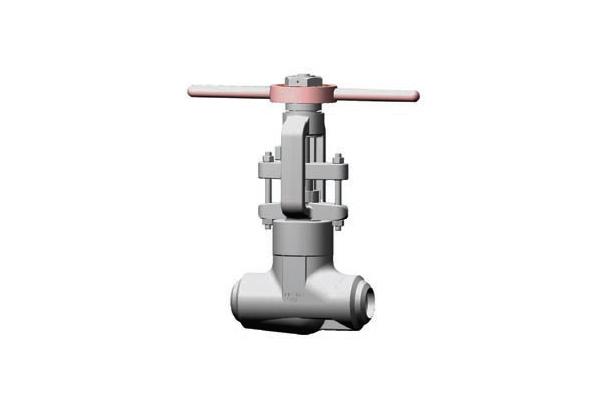

GLOBE VALVES
모델명
FORGED STEEL GLOBE VALVES - OS & Y, PSB TYPE (72)
사이즈
-
중량
-
제품 상세 정보
STANDARD MATERIALS
| PART NAMES | MATERIALS |
|---|---|
| BODY | NOTE 1) |
| BONNET | NOTE 1) |
| SEAT | ASTM A105-H.F |
| DISC | ASTM A276-410 |
| STEM | ASTM A276-410 |
| GASKET | GRAPHITE |
| GLAND PACKING | GRAPHITE |
| GLAND | ASTM A276-410 |
NOTE
1) ASTM A105, A182-F304(L) / F316(L) / F22 / F5 / F9 / F317 / F347 / F321
SPECIFICATIONS
1) Valve Size : 1/2" ~ 2"
2) Applicable Rating : ASME 2500# ~ 4500#
3) Temperature : Up to 500℃
4) Code & Standard : ASME, ASTM
Designed by ASME B16.25 / 16.34
5) Constructions
- End Connection : Butt-Welded Type
- PSB (=Pressure-Seal Bonnet) Type
- Full Bore
- Rising Stem / Non-Rising Hand wheel
- Manual or Motor Operated
(Pneumatic, Electric, or Hydraulic)
