제품명

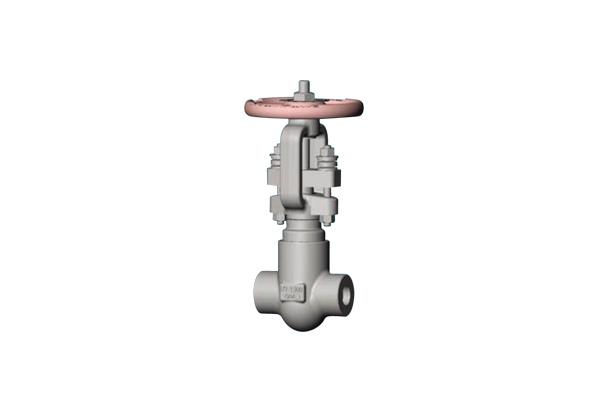

GATE VALVES
모델명
FORGED STEEL GATE VALVES - FOR NUCLEAR POWER PLANT - OS & Y, WB TYPE (41)
사이즈
-
중량
-
제품 상세 정보
STANDARD MATERIALS
| PART NAMES | MATERIALS |
|---|---|
| BODY | NOTE 1) |
| BONNET | NOTE 1) |
| SEAT | ASME (S)A479-410-H.F |
| WEDGE | ASTM A217-CA15 |
| STEM | ASME (S)A479-410 |
| GASKET | GRAPHITE |
| HANDWHEEL | ASTM A47 |
| GLAND PACKING | GRAPHITE |
| GLAND | ASME (S)A479-410 |
NOTE
1) ASTM (S)A105, A182-F304(L) / F316(L) / F22 / F5 / F9 / F317 / F347 / F321
SPECIFICATIONS
1) Valve Size : 1/2" ~ 2"
2) Applicable Rating : ASME 900# ~ 2500#
3) Temperature : Up to 500℃
4) Code & Standard : ASME, ASTM
Designed by ASME B16.11 / 16.25 / 16.34 / 16.5
5) Constructions
- End Connection : Socket-Welded or Flanged Type
- WB (=Welded Bonnet) Type
- Live Loaded Packing Type
- Full Bore
- Manual or Motor Operated
(Pneumatic, Electric, or Hydraulic)
