제조사
에스앤에스밸브(주)[바로가기]
제품 타입
기계
브랜드
-
SKU
120460
제품명

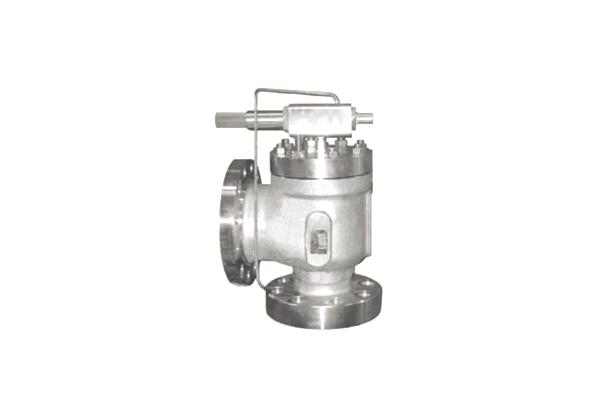

CRYOGENIC VALVES
모델명
SAFETY VALVES - SERIES SF-5200 (PILOT-OPERATED)
사이즈
-
중량
-
제품 상세 정보
STANDARD MATERIALS
| PART NAMES | MATERIALS |
|---|---|
| BODY | NOTE 1) |
| BONNET | NOTE 1) |
| SEAT | ASTM A276-316(L)SS-(H.F) |
| DISC | 316(L)SS |
| PILOT SEAT | 304(L)SS, 316(L)SS |
| PILOT DISC | 304(L)SS, 316(L)SS |
| SPRING | 304SS, 316SS or INCONEL |
| PIPNG | Stainless Steel |
NOTE
1) Cast Steel, ASTM A531-CF3(M) / CF8(M)
SPECIFICATIONS
1) Valve Size : 2" x 3" ~ 8" x 10"
2) Applicable Rating : Up to ASME 1500# x 300#
3) Temperature : Down to -196℃
4) Code & Standard :
- Orifice : API RP 520, MFG. Standard
- Cryogenic Test : BS6364, MFG. Standard
- Shell Test : API RP 598, ASME B16.34, KOGAS Standard
- Seat Leakage Test : API RP 527
5) Constructions
- End Connection : Flanged Type
- Full Bore / Full Nozzle
- Screwed Nozzle
- Self-alignment Trim
