제조사
에스앤에스밸브(주)[바로가기]
제품 타입
기계
브랜드
-
SKU
120453
제품명
BALL VALVES
모델명

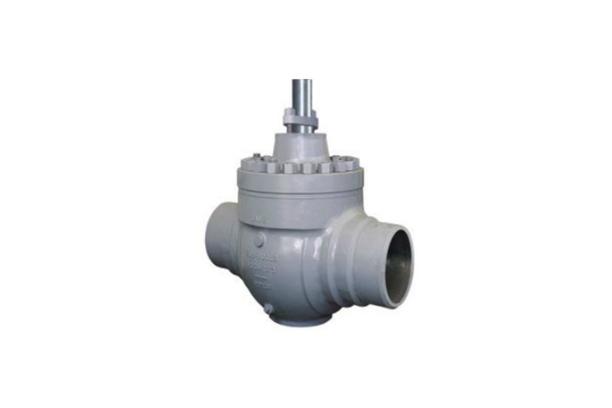

CAST STEEL TOP ENTRY BALL VALVES-SS3070 SERIES (CE)
사이즈
-
중량
-
제품 상세 정보
STANDARD MATERIALS
| PART NAMES | MATERIALS |
|---|---|
| BODY | NOTE 1) |
| BONNET | NOTE 1) |
| SEAT | CAST STEEL OR SOFT-PCTFE & GRAPHITE |
| BALL | ASTM A276-304/316 OR A351-CF8(M) |
| STEM | ASTM A276-304 |
| GASKET | SPIRAL WOUNDED GRAPHITE |
| BONNET BOLT | CARBON STEEL OR STAINLESS STEEL |
| GLAND PACKING | GRAPHITE |
| GLAND | ASTM A276-316 |
NOTE
1) CAST STEEL, STAINLESS STEEL
SPECIFICATIONS
1) Valve Size : 2" ~ 42"
2) Applicable Rating : ASME 150# ~ 2500#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM
Designed by ASME B16.11 / 16.34 / 16.5, API6D
5) Constructions
- End Connection : Butt-Welded or Flanged Type
- Trunnion Ball Type
- Reduce Bore / Full Bore
- Fire Safety Construction (Certified by TUV)
- Manual or Motor Operated(Pneumatic, Electric or Hydraulic)
