제조사
에스앤에스밸브(주)[바로가기]
제품 타입
기계
브랜드
-
SKU
120393
제품명

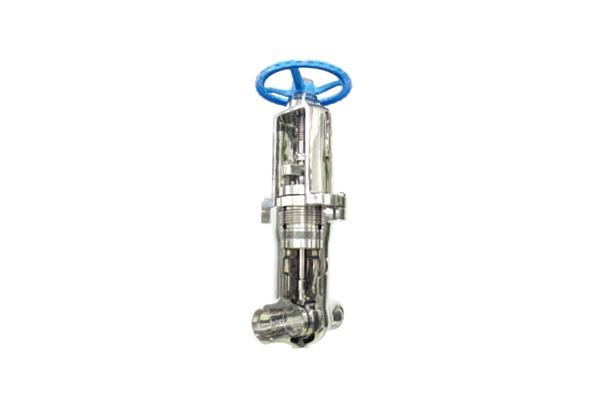

GATE VALVES
모델명
PARALLEL SIDE GATE VALVES-OS & Y, PSB TYPE (CV-PSB)
사이즈
-
중량
-
제품 상세 정보
STANDARD MATERIALS
| PART NAMES | MATERIALS |
|---|---|
| BODY | NOTE 1) |
| BONNET | NOTE 2) |
| SEAT | ASTM A276-316(H.F) / A105(H.F) 3) |
| DISC | ASTM A276-304(H.F) / A576-1020(H.F) 3) |
| STEM | ASTM A276-410 |
| GASKET | GRAPHITE |
| HABDWHEEL | ASTM A197 |
| GLAND PACKING | GRAAPHITE |
| GLAND | ASTM A276-410 |
note
1) All the Stainless Steel Available
2) HIGH TEMP. : ASTM A216-WCB, ASTM A217-WC1 / WC6 / WC9
3) Hard Facing : Stellite, Ni-Cr Coating, Nickel Alloy Overlay
SPECIFICATIONS
1) Valve Size : 2" ~ 16"
2) Applicable Rating : ASME 600# ~ 1500#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM, KGSC
Designed by ASME B16.34 / 16.10 / 16.25
5) Constructions
- End Connection : Flanged Type
- PSB (=Pressure Seal Bonnet) Type
- Full Bore
- Manual or Motor Operated
(Pneumatic, Electric, or Hydraulic)
