Specification

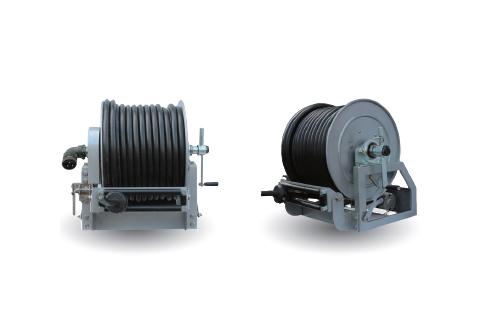

- SR3000 Series are non-contacting cable reel for AUDIO & VIDEO
- Distinguished 3 Type of SR30C, SR30R, SR30T by INLET connect type
- Excellent Rewind capacity by powerful DC Motor. DC Motor is installed inside of the reel
- Safety cover on the chain gear is installed to prevent safety accident.
- Provide detachable handle basically
- Attach connector of elbow type at axis of shaft
- Compact type by connector located outside
- No connector broken problem
- Connector fixed type at right or left side of drum inside
- Provide spare drum for Store INLET CABLE
Model No. |
Reel Dimension (W×D×H)mm |
Rewind Length by Cable capacity |
Rewind Type |
O.D ø21 |
O.D ø16 |
O.D ø10 |
O.D ø 8 |
SR 30C |
560×450×480 |
50MR |
80MR |
220MR |
350MR |
Power Rewind |
SR 30R |
560×450×480 |
50MR |
80MR |
220MR |
350MR |
Power Rewind |
SR 30T |
630×450×480 |
50MR |
80MR |
220MR |
350MR |
Power Rewind |
※ The Specifications are subject to change without notice for improvement
