지금 보고 계신 제품의 제조사에요
(주)릴텍산업
제조사
(주)릴텍산업[바로가기]
제품 타입
기계
브랜드
-
SKU
137838
제품명

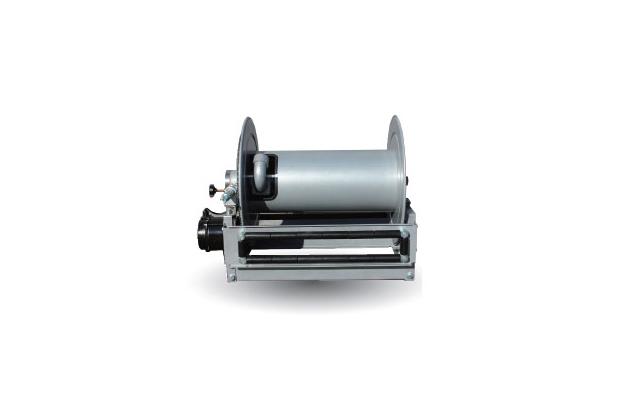

스토레지 릴 (SR2000-Series)
모델명
SR2/15-17, SR2/15-29, SR2/15-39, SR2/19-17, SR2/19-29, SR2/19-39, SR2/25-17, SR2/25-29, SR2/25-39
사이즈
-
중량
-
제품 상세 정보
제품특징
- 소형이동통신용/방송용케이블, 로프, 와이어 보관시 사용
- 스위벨조인트나 전기접점없이 단순보관형태의 제품
- 강력한 POWER의 DC MOTOR 사용
- 안전사고 방지용 체인커버부착
- 어느 방향에서도 케이블을 사용가능한 4방향가이드롤러-선택사양
- 관성에 의한 Cable 꼬임 방지장치(Roller press)-선택사양
- 이동중계차, 위성중계차등에 사용
| MODEL NO. | HOSE CAPACITY | REEL DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D | LEN GTH | A | B | C | D | E | F (MANUAL) |
F (POWER) |
G | H | X | Y | |
| mm inch | meter feet | mm inch |
mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | |
| SR2/15-17 | 15 5/8" |
90 300 |
440 17.3 |
280 11 |
250 9.8 |
390 15.4 |
450 17.7 |
565 22.2 |
765 30.1 |
500 19.7 |
275 10.8 |
400 15.7 |
290 11.4 |
| SR2/15-29 | 15 5/8" |
150 500 |
610 24 |
450 17.7 |
250 9.8 |
390 15.4 |
450 17.7 |
735 28.9 |
935 36.8 |
500 19.7 |
275 10.8 |
570 22.4 |
290 11.4 |
| SR2/15-39 | 15 5/8" |
200 650 |
610 24 |
450 17.7 |
250 9.8 |
440 17.3 |
500 19.7 |
785 30.9 |
985 38.8 |
550 21.7 |
300 11.8 |
570 22.4 |
340 13.4 |
| SR2/19-17 | 19 3/4" |
90 300 |
660 26 |
500 19.7 |
250 9.8 |
420 16.5 |
450 17.7 |
785 30.9 |
985 38.8 |
500 19.7 |
275 10.8 |
620 24.4 |
370 14.6 |
| SR2/19-29 | 19 3/4" |
150 500 |
660 26 |
500 19.7 |
250 9.8 |
470 18.5 |
500 19.7 |
835 32.9 |
1035 40.7 |
550 21.7 |
300 11.8 |
620 24.4 |
420 16.5 |
| SR2/19-39 | 19 3/4" |
200 650 |
660 26 |
500 19.7 |
250 9.8 |
520 20.5 |
550 21.7 |
835 32.9 |
1035 40.7 |
600 23.6 |
325 12.8 |
620 24.4 |
470 18.5 |
| SR2/25-17 | 25 1" |
90 300 |
710 28 |
550 21.7 |
250 9.8 |
470 18.5 |
500 19.7 |
885 34.8 |
1085 42.7 |
550 21.7 |
300 11.8 |
670 26.4 |
420 16.5 |
| SR2/25-29 | 25 1" |
150 500 |
710 28 |
550 21.7 |
250 9.8 |
570 22.4 |
600 23.6 |
885 34.8 |
1085 42.7 |
650 25.6 |
350 13.8 |
670 26.4 |
520 20.5 |
| SR2/25-39 | 25 1" |
200 650 |
860 33.9 |
700 27.6 |
250 9.8 |
570 22.4 |
600 23.6 |
1035 40.7 |
1235 48.6 |
650 25.6 |
350 13.8 |
820 32.3 |
520 20.5 |
※ The specifications are subject to be changed without previous notice for improvement.
