NOVEL PRECISION METAL CO., LTD. was founded on May 1st.1991 by experts in the Fasteners field.
With an external competitiveness strength and an internal operations stability we continuously grow with our customers.
NOBEL PRECISION METAL CO., LTD. developed a system that Received good reactions from industrial equipment, electrical equipment, ship building yard, land-sea structures. Big or small size plants…and compliment from customers. These results were achieved thanks to customers belief and interest in our products.

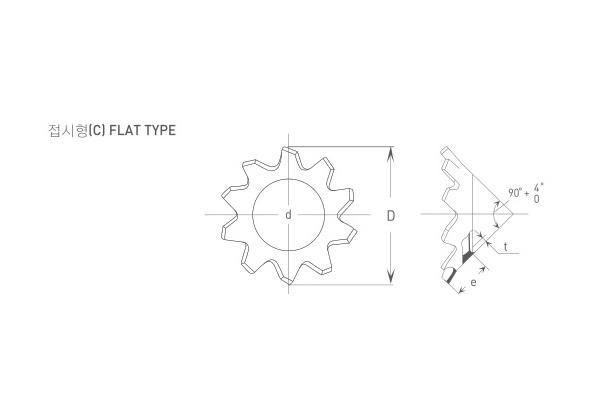

SIZE NO.	APPLICABLE SEREW∮	D		D	E	T		NO. OF TOOTH
SIZE NO.	APPLICABLE SEREW∮	CRITERIA FIGURE	ALLOWABLE ERROR	CRITERIA FIGURE	ALLOWABLE ERROR	CRITERIA FIGURE	ALLOWABLE ERROR	NO. OF TOOTH
CW – 3	3	3.2	+0.20	6	1.8	0.4	±0.03	8
3.5	3.5	3.7		7	2.1	0.4		8
4	4	4.3		8	2.5	0.4		8
4.5	4.5	4.8		9	1.7	0.5	±0.035	9
5	5	5.3		10	3.1	0.5		9
6	6	6.4	+0.30	12	3.8	0.5		10
8	8	8.4	+0.30	16	5.1	0.6	±0.04	12
