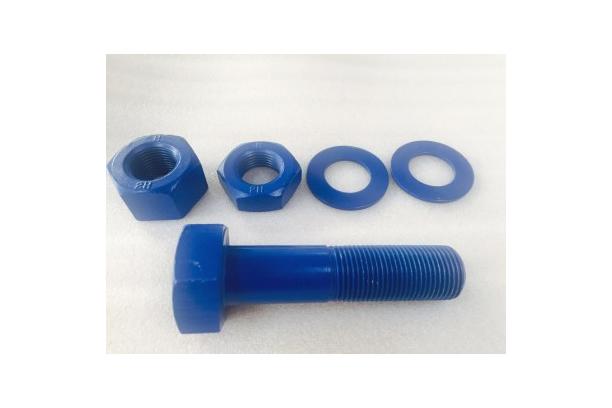

METRIC KS B1002 JIS 1180
| BOLT DIAMETERAND PITCH | D1 | H | B | C | R | S | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BASIC | TOLERANCE | BASIC | TOLERANCE | BASIC | TOLERANCE | L≤125 | 125＜L≤200 | L>200 | ||||||||||
| COARSE | FINE | FIN | SEMI FIN | RAGE | FIN | SEMI FIN | RAGE | FIN | SEMI FIN | RAGE | APP | MIN | ||||||
| M6x1 | – | 6 | 0-0.1 | 0-0.2 | +0.6-0.15 | 4 | ±0.15 | ±0.25 | ±0.6 | 10 | 0-0.2 | 0-0.6 | 0-0.6 | 11.5 | 0.25 | 18 | – | – |
| M8x1.25 | M8x1 | 8 | 0-0.15 | +0.7-0.2 | 5.5 | 13 | 0-0.25 | 0-0.7 | 0-0.7 | 15 | 0.4 | 22 | – | – | ||||
| M10x1.5 | M10x1.25 | 10 | 7 | ±0.2 | ±0.3 | ±0.8 | 17 | 19.6 | 0.4 | 26 | – | – | ||||||
| M12x1.75 | M12x1.25 | 12 | 0-0.2 | 0-0.25 | +0.9-0.2 | 8 | 19 | 0-0.3 | 0-0.8 | 0-0.8 | 21.9 | 0.6 | 30 | 36 | – | |||
| M14x2 | M14x1.5 | 14 | 9 | 22 | 25.4 | 0.6 | 34 | 40 | – | |||||||||
| M16x2 | M16x1.5 | 16 | 10 | 24 | 27.7 | 0.6 | 38 | 44 | – | |||||||||
| M18x2.5 | M18x1.5 | 18 | 12 | ±0.35 | ±0.9 | 27 | 31.2 | 0.8 | 42 | 48 | – | |||||||
| M20x2.5 | M20x1.5 | 20 | +1.2-0.4 | 13 | 30 | 34.6 | 0.8 | 46 | 52 | – | ||||||||
| M22x2.5 | M22x1.5 | 22 | 14 | 32 | 0-0.4 | 0-1.0 | 0-1.0 | 37 | 0.8 | 50 | 56 | – | ||||||
| M24x3 | M24x2 | 24 | 15 | 36 | 41.6 | 1 | 54 | 60 | – | |||||||||
| M27x3 | M27x2 | 27 | 17 | 41 | 47.3 | 1 | 60 | 66 | 79 | |||||||||
| M30x3.5 | M30x2 | 30 | 19 | ±0.25 | ±0.4 | ±1.0 | 46 | 53.1 | 1 | 66 | 72 | 85 | ||||||
| M33x3.5 | M33x2 | 33 | 0-0.25 | 0-0.4 | +1.2-0.4 | 21 | 50 | 57.7 | 1 | 72 | 78 | 91 | ||||||
| M36x4 | M36x3 | 36 | 23 | 55 | 0-0.45 | 0-1.2 | 0-1.2 | 63.5 | 1 | 78 | 84 | 97 | ||||||
| M39x4 | M39x3 | 39 | 25 | 60 | 69.3 | 1.2 | 84 | 90 | 103 | |||||||||
| M42x4.5 | – | 42 | 26 | 65 | 75 | 1.2 | 90 | 96 | 109 | |||||||||
| M45x4.5 | – | 45 | 28 | 70 | 80.8 | 1.6 | 96 | 102 | 115 | |||||||||
| M48x5 | – | 48 | 30 | 75 | 86.5 | 1.6 | 102 | 108 | 121 | |||||||||
| M52x5 | – | 52 | 0-0.3 | 0-0.45 | +1.2-0.7 | 33 | ±0.3 | ±0.5 | ±1.5 | 80 | 92.4 | 2 | – | 116 | 129 | |||
| M56x5.5 | – | 56 | – | 35 | – | 85 | 0-0.55 | 0-1.4 | – | 98.1 | 2 | – | 124 | 137 | ||||
| M60x5.5 | – | 60 | 38 | 90 | 104 | 2 | – | 132 | 145 | |||||||||
| M64x6 | – | 64 | 40 | 95 | 110 | 2 | – | 140 | 153 | |||||||||
| M68x6 | – | 68 | 43 | 100 | 115 | 2 | – | 148 | 161 | |||||||||
| – | M72x6 | 75 | 45 | 105 | 121 | 2 | – | 156 | 169 | |||||||||
| – | M76x6 | 76 | 48 | 110 | 127 | 2 | – | 164 | 177 | |||||||||
| – | M80x6 | 80 | 50 | 115 | 133 | 2 | – | 172 | 158 | |||||||||
Unified ANSI B18.2.1
| NOMINAL SIZEOF BASIC BOLT DIA | D1 | B | C | H | R | S | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BODY DIA | WIDTH ACROSSCORNERS | WIDTH ACROSSCORNERS | HEADHEIGHT | RADIUSOF FITTET | THREAD LENGTHL≤6 L＞6 | |||||||||
| MAX | BASIC | MAX | MIN | MAX | MIN | BASIC | MAX | MIN | MAX | MIN | BASIC | BASIC | ||
| 1/4 | 0.2500 | 0.260 | 7/16 | 0.438 | 0.425 | 0.505 | 0.484 | 11/64 | 0.188 | 0.150 | 0.03 | 0.01 | 0.750 | 1.000 |
| 5/16 | 0.3125 | 0.324 | 1/2 | 0.500 | 0.484 | 0.577 | 0.552 | 7/32 | 0.235 | 0.195 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3/8 | 0.3750 | 0.388 | 9/16 | 0.562 | 0.544 | 0.650 | 0.620 | 1/4 | 0268 | 0.226 | 0.03 | 0.01 | 1.000 | 1.250 |
| 7/16 | 0.4375 | 0.452 | 5/8 | 0.625 | 0.603 | 0.722 | 0.687 | 19/64 | 0.316 | 0.272 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1/2 | 0.5000 | 0.515 | 3/4 | 0.750 | 0.725 | 0.866 | 0.826 | 11/32 | 0.364 | 0.302 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8 | 0.6250 | 0.642 | 15/16 | 0.38 | 0.906 | 1.083 | 1.033 | 27/64 | 0.444 | 0.378 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4 | 0.7500 | 0.768 | 1 1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 1/2 | 0.524 | 0.455 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8 | 0.8750 | 0.895 | 1 5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 37/64 | 0.604 | 0.531 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1 | 10.000 | 1.022 | 1 1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 43/64 | 0.700 | 0.591 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1 1/8 | 1.1250 | 1.149 | 1 11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 3/4 | 0.780 | 0.658 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1 1/4 | 1.2500 | 1.277 | 1 7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 27/32 | 0.876 | 0.749 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1 3/8 | 1.3750 | 1.404 | 2 1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 29/32 | 0.940 | 0.810 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1 1/2 | 1.5000 | 1.531 | 2 1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1 | 1.036 | 0.902 | 0.09 | 0.03 | 3.250 | 3.500 |
| 1 3/4 | 1.7500 | 1.785 | 2 5/8 | 2.625 | 2.538 | 3.031 | 2.891 | 1 5/32 | 1.196 | 1.054 | 0.12 | 0.04 | 3.750 | 4.000 |
| 1 | 2.0000 | 2.039 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1 11/32 | 1.388 | 1.175 | 0.12 | 0.04 | 4.250 | 4.500 |
| 2 1/4 | 2.2500 | 2.305 | 3 3/8 | 3.375 | 3.262 | 30897 | 3.719 | 1 1/2 | 1.548 | 1.327 | 0.19 | 0.06 | 4.750 | 5.000 |
| 2 1/2 | 2.5000 | 0.559 | 3 3/4 | 3.750 | 3.652 | 4.330 | 4.133 | 1 21/32 | 1.708 | 1.479 | 0.19 | 0.06 | 5.250 | 5.500 |
| 2 3/4 | 2.7500 | 2.827 | 4 1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 1 13/16 | 1.869 | 1.632 | 0.19 | 0.06 | 5.750 | 6.000 |
| 3 | 3.0000 | 3.081 | 4 1/2 | 4.500 | 4.330 | 5.196 | 4.959 | 2 | 2.060 | 1.815 | 0.19 | 0.06 | 6.250 | 6.500 |
| 3 1/4 | 3.2500 | 3.335 | 4 7/8 | 4.875 | 4.712 | 5.629 | 5.372 | 2 3/16 | 2.251 | 1.936 | 0.19 | 0.06 | 6.750 | 7.000 |
| 3 1/2 | 3.5000 | 3.589 | 5 1/4 | 5.520 | 5.075 | 6.062 | 5.786 | 2 5/16 | 2.380 | 2.057 | 0.19 | 0.06 | 7.250 | 7.500 |
| 3 3/4 | 3.7500 | 3.858 | 5 5/8 | 5.625 | 5.437 | 6.495 | 6.198 | 2 1/2 | 2.572 | 2.241 | 0.19 | 0.06 | 7.750 | 8.000 |
| 4 | 4.0000 | 4.111 | 6 | 6.000 | 6.928 | 6.612 | 2 11/16 | 5.764 | 2.424 | 0.19 | 0.06 | 8.250 | 8.500 | |
