AMC2200 Series [구 AMC2100]

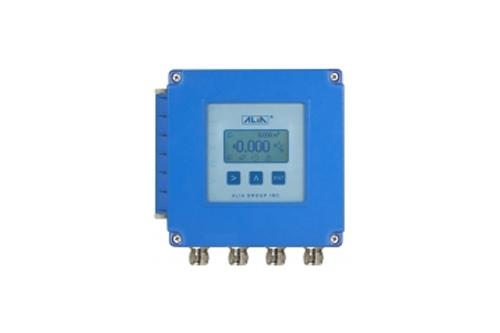

The Aliamag AMC2200 series converter is a microprocessor based intelligent transmitter that can be paired with any of the Alia AMF series sensors. The unit features multiple display parameters including flow rate, flow total, diagnostics, programming and troubleshooting.

Feature

• Three line LCD display Flow Rate / Totalizer
• Accuracy of +/-0.4% value of reading
• Bi-directional flow measurement, current and pulse output
• Large digital display
• Records up to 99 power on/off time
• MODBUS/HART communication

Specification

Excitation:                                                                     Keyboard:
DC pulsed                                                                        3 external keys for programming
Display:                                                                         and display control
3 lines LCD with illumination                                             Low Flow Cutoff:
Line 1                                                                             0 to 9.9 %
11 digit totalizer for forward flow                                       Data logger Function:
11 digit totalizer for reverse flow                                       99 times flowrate records for power on/off
11 digit totalizer for difference                                          Record Data:
Line 2                                                                            Date/Time when Power on/off
5 digit flowrate / velocity / % / mA / HZ                            Flow rate when Power on/off
Line 3                                                                            Totalizer when Power on/off
Parameter / Query / Clr tot / Query LOG                            Damping:
Alarm, Guidance                                                              0 to 99 Seconds
Unit                                                                               Density Setting:
M3/H, L/H, Kg/H, T/H, L/min, M3/min, GPH                        0.1 to 9.99 g/㎤
GPM, ML/H, ML/m, ML/sec                                                Self Diagnosis:
Measuring Range:                                                         The following error message are
Min.  0 to 0.15 m/s                                                          displayed if failure occurs
Max. 0 to 15 m/s                                                             - Coil failure
Accuracy:                                                                      - Power failure
+/-0.4% read-out values (Velocity >=0.5 m/s)                  - Overranged output
+/-0.002 m/s (Velocity < 0.5 m/s)                                   - Internal error
Repeatability:                                                               - Overflow
+/-0.1% read-out values                                                 - Empty pipe
Current Output:                                                            Cable Entry:
4-20 mA (Isolated)                                                          Standard :PG11 Option:1/2"NPTF
Load                                                                              Protection Class:
Max. 600 Ω                                                                       IP 65
Pulse output:                                                                Ambient Temperature:
Open collector                                                                 -25 to +65 ℃
Rating                                                                           Material:
3 to 30 VDC, 20 mA Max.                                                 Aluminum Alloy
Pulse Rate:                                                                   Power Supply:
1)Scale pulse (Pusle/㎥, Pulse/L, Other)                           90-260 VAC, 50/60 Hz
2)Frequency: 0-5000 Hz                                                  24VDC +/-10% (Option)
Pulse Width:                                                                 Power Consumption:
50% of band width                                                          3-17 W (Dependent on sensor size)
Alarm:                                                                          Weight:
High/Low with open collector output                                 1.4 Kg
Rating                                                                          Mounting:
3 to 30 VDC, 20 mA Max.                                                Wall mounting
Communication:                                                           Bracket on 2" pipe
RS 485 (MODBUS Protocol)
HART signal (Compatible)
Data Storage:
Operation parameters and totalizer
figures are stored by EEPROM for more
than 10 years
