Magbot, robot automatic tool changer, is the world's ﬁrst fully wireless changing system.
A single robot requires various robot end-effectors (tools) to provide multi-processing and services; thus, an automated robotic tool changer is essential to change the tools automatically.
Magbot, an automated robotic tool changer, offers an ultra-simple changing system based on ultra-fast, ultra-powerful switching magnetic technology.
It is recognized with the top quality with strong durability (drop, bump, vibration) and high reliability (high & low temperature, high humidity, waterproof, dustproof).
Along with the world's ﬁrst fully wireless robot tool changer of TCW1, the wired tool changer of TCV1 with a payload of 10Kg and TCV2 with a payload of 16Kg are ultra-simple operating system by using the power system (24V 2A) of the collaborative robot without the external power system.

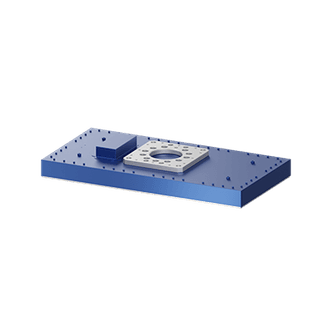

The price competitive Magbot tool plate (Tool-side Tool Changer) for the expansion of various tools for automated and unmanned robot system ensures strong scalability.
Magbot provides innovative value to customers by expanding the application to the magnetic gripper for the pick and place process, in addition to the robot automatic tool changing function.

magbot Full Version Video

카탈로그-맥봇

Catalog-Magbot

A leading automation solutions provider specializing in the development and production of robot automatic tool changers and magnetic grippers, notably commercializing the world's first fully wireless robot automatic tool changer 'magbot'

로봇 자동 툴체인져 및 마그네틱 그리퍼를 전문적으로 개발 및 생산하는 자동화 솔루션 기업으로, 세계 최초 완전 무선 로봇 자동 툴체인져 '맥봇(magbot)'을 상용화한 기술 선도 기업

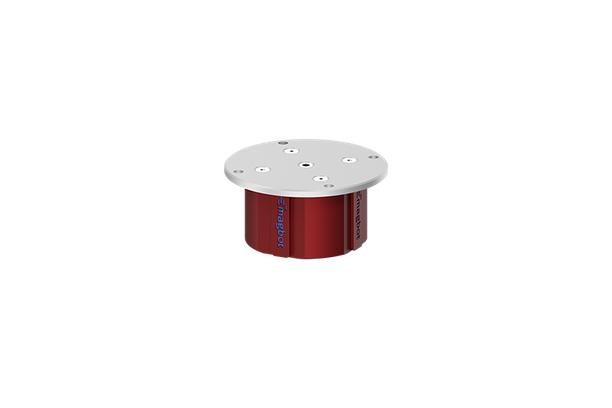

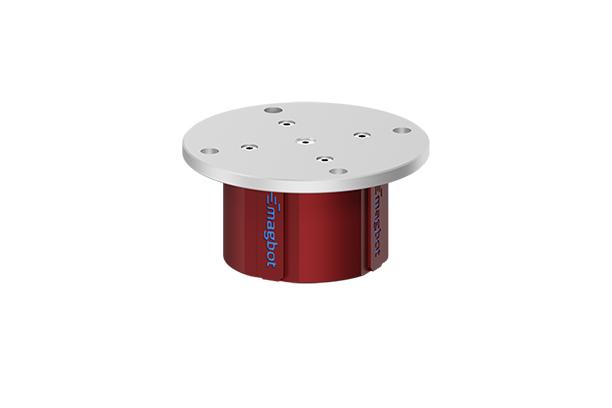

Spec		MG1
H.F		1kg[10N·m,2.20lbs]
크기		Ø40 x 26.5mm[Ø1.57 x 1.04in]
중량		153g[0.34lbs]
흡착방식		스위칭 마그네틱 기술
ip등급(방수 및 방진)		IP57
Grip/Release Duration		Grip: 200ms, Release: 200ms
전기사양		24V 1A
온도범위(최소/최대)		-20˚C~80˚C [-4˚F~176˚F]
