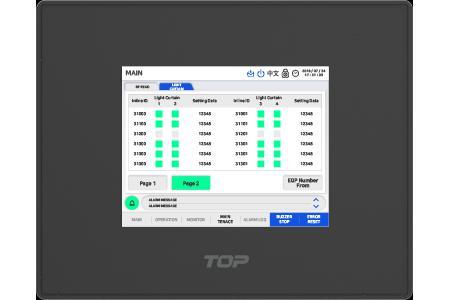

TOPRE0300WD (NE)

3.5" TFT Color, 320x240

1. 성능사양

Display	Display Type	3.5' TFT Color
	Color	16M Colors
	Display Area(mm)	70.08x52.5
	Resolution(dot)	320x240
	Brightness Level	10 Levels(by software)
	Backlight Type	LED
	Backlight Life	50,000 hours
Touch	Touch Type	Analog resistive film
	Resolution(Cell)	320x240
	Touch Life	1 million times or more
Interface	Serial COM1 (RS-232C Only)	RS-232C, RS-422/485 Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400~115.2kbps Connector: DSUB 9pin x 1
	Serial COM2 (RS-422/485 Only)
	Ethernet	IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: RJ-45 x 1 NE(No Ethernet) model: cannot support Ethernet interface
	USB Host	Not available
	USB OTG	USB 2.0 Compatible, Output 5Vdc/0.5A, Max 5m Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol)
		Connector: USB Mini-B(Side) x 1
	SD Card	SD Card Slot x 1, SDHC(MAX 32GB)
	Printer	Almost USB interface Printers, Roll Printer(EPSON protocol): RS-232C
Memory &Others	Screen Memory	64 MB
	Backup Memory	512KB: System buffer(10K Word), Including Alarm/Logging/Recipe
	Backup Period	Permanent
	Real Time Clock	Built in
	Status LED	3 LEDs(Power, Operation, Link) Built in

2. 일반사양
