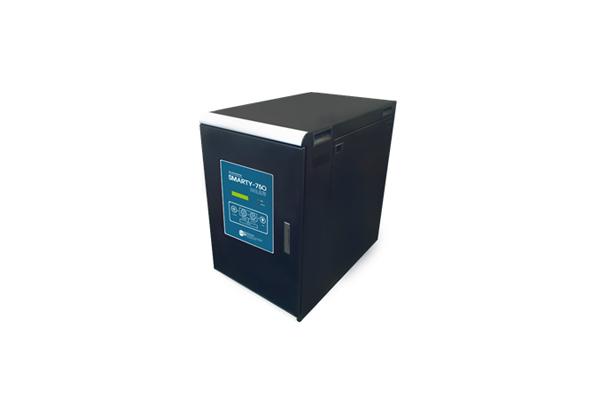

750W off-grid ESS (Energy Storage System)
모델명
SMARTY-CUBE H750AB2B-2.4K
시리즈
전력 제어 부문
자료
Catalog-Luxco-Energy Storage System-750W off-grid ESS
구매정보
provider logo
(주)럭스코

선박 및 산업플랜트 설비용 전기전자 기자재 산업, 태양광 모듈 생산발전 사업

연락처
052-280-0800
이메일
jmjung@luxco.co.kr
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
(주)럭스코[바로가기]
브랜드
-
SKU
129206
제품명
750W off-grid ESS (Energy Storage System)
모델명
SMARTY-CUBE H750AB2B-2.4K, SMARTY-CUBE H750AB2B-6.2K
사이즈
-
중량
-
제품 상세 정보

750W Off-gird ESS는 오지와 같이 계통이 없는 지역에서 사용할 수 있는 독립형 ESS입니다.

내부 구성은 태양광 모듈에서 발전된 직류 전압을 배터리에 충전하는 충전부, 태양광 모듈과 배터리의 전압을 교류 전압으로 출력하는 인버터로 구성됩니다.

주요기능은 부하에 쓰고 남은 잉여 전력을 배터리에 저장해 두었다가, 모듈로 부터 전력 공급이 없어도 야간이나 비상시에 저장된 에너지를 이용하여 교류를 공급하는 것입니다.

다양한 보호 기능을 내장하고 있으며, 고효율의 성능과 디스플레이로 제품 상태를 확인 가능합니다.


ModelSMARTY-CUBE
H750AB2B-2.4K
SMARTY-CUBE
H750AB2B-6.2K
System OverviewRated Voltage220/230 VAC(Single-phase)<-
Energy Capacity2.4 kWh6.2 kWh
System SpecificationEfficlencyMore than 90%<-
THDLess than 3%<-
Solar InputInput Voltage20 ~ 38 VDC<-
Normal Voltage31 VDC<-
Initial Feeding Voltage20 VDC<-
Maximum Input Current26 A52 A
OutputRated Power750 VA<-
Rated Voltage220 / 230 VAC<-
Frequency50/60 ± 0.1Hz<-
Maximum Output Current3.5 A5 A
Battery DataTypeLead-acid<-
Voltage24 VDC
Capacity(recommend)100A260A
Back-up Time3 hr8 hr
EnclosureOperating Temperature-10 ~ 45ºC<-
Relative HumidityLess than 90%<-
CoolingFan Cooling<-
ProtectionOver Voltage, Low Voltage, Over Current<-
Dimensions (W x H x D)380 x 500 x 600mm410 x 800 x 770mm
Weight (Maximum)83kg170kg
