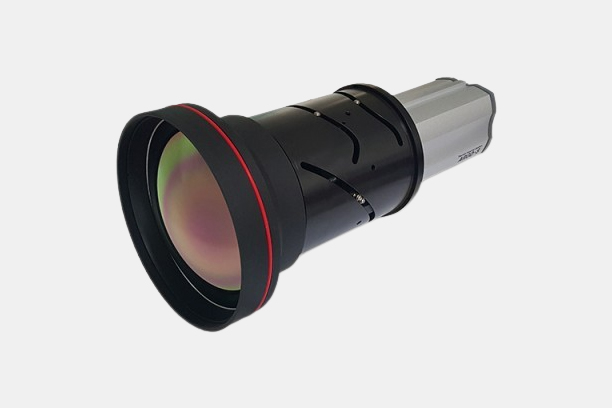

Based on DSP core technology and TCP/IP interface, Uncooled microbolometer long wave infrared (LWIR) camera.
Uncooled micro bolometer long wave infrared (LWIR) camera.
- Pixel Resolution 640 x 480
- MPEG4, H.264 Video streaming, Frame rate 60Hz
- HDMI Digital Output
- Exclusive use of DRONE
| Imaging Performance | |||
| Detector Type | Focal Plane Array(FPA) Uncooled microbolometer, Vox | ||
| Pixel Resolution | 640x480 | ||
| Spectral Range | 8-14 μm | ||
| Average Transmission | 90% | ||
| F# | 1 | ||
| FOV | 39° | ||
| Focal Length | 19mm | ||
| Measurement | |||
|---|---|---|---|
| NETD | <70mK | ||
| Image Presentation | |||
| Digital Output | 16bit digital, HDMI | ||
| Video streaming | MPEG4, H.264 | ||
| Frame rate | 30 / 60Hz | ||
| Environmental | |||
| Operating Temperature | -20°C ~ +55°C | ||
| Storage Temperature | -25°C ~ +60°C | ||
| Physical Characteristics | |||
| Weight | 159g | ||
| Size(L x H x W) | 55 x 47 x 47(mm) | ||
| Included Components | |||
| Power Supply | 12VDC, 500mA | ||
