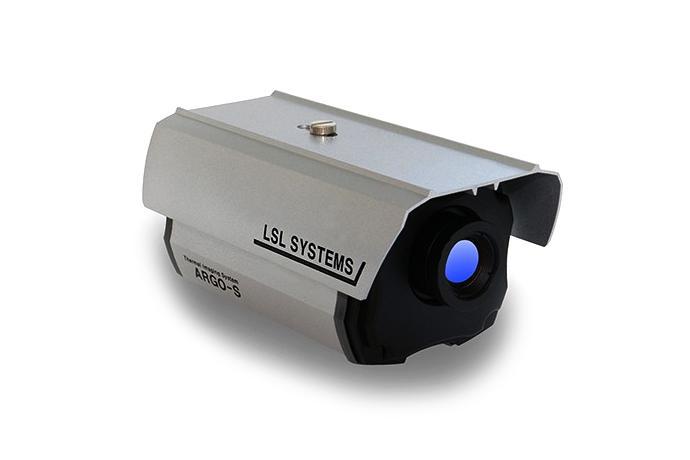

Based on DSP core technology and TCP/IP interface, Uncooled microbolometer long wave infrared (LWIR) camera.
Based on DSP core technology and TCP/IP interface, Uncooled micro bolometer long wave infrared (LWIR) camera.
19mm Lens, Continuous Digital zoom
PoE(Power over Ethernet)
- Standard PoE+(IEEE 802.3at) and PoE(IEEE 802.3af-2003)
5 kinds of color mode in accordance with the environment
lslsystems
| Imaging Performance | |||
| Detector Type | Focal Plane Array(FPA) Uncooled microbolometer, Vox | ||
|---|---|---|---|
| Pixel Resolution | 320x240 | ||
| Spectral Range | 8-14 μm | ||
| Average Transmission | 90% | ||
| F# | 1 | ||
| FOV | 39° | ||
| Focal Length | 19mm | ||
| Measurement | |||
| NETD | <70mK | ||
| Image Presentation | |||
| Digital Output | 16bit digital | ||
| Video streaming | 30Hz | ||
| Environmental | |||
| Operating Temperature | -20°C ~ +55°C | ||
| Storage Temperature | -25°C ~ +60°C | ||
| Physical Characteristics | |||
| Weight | 1Kg | ||
| Size(L x H x W) | 185 x 86 x 100(mm) | ||
| Included Components | |||
| Power Supply | 12VDC, 3.4A or PoE(Power over Ethernet) | ||
| Compliance | Softwere development kit. Windows platform. | ||
| Recommended Range(Focal Length: 19mm) | |||
| Human(1.7m) | CAR(2.3m) | ||
| Detection | 175m | 236m | |
| Recognition | 77m | 104m | |
| Identification | 38m | 52m | |
