• Intel PineView OnBoard Processor
• 2 SO-DIMMs DDR3
• 6 GbE ports / 1 x LAN Bypass
• Expandable with 4 GbE Switch ports



 Specification

Form factor

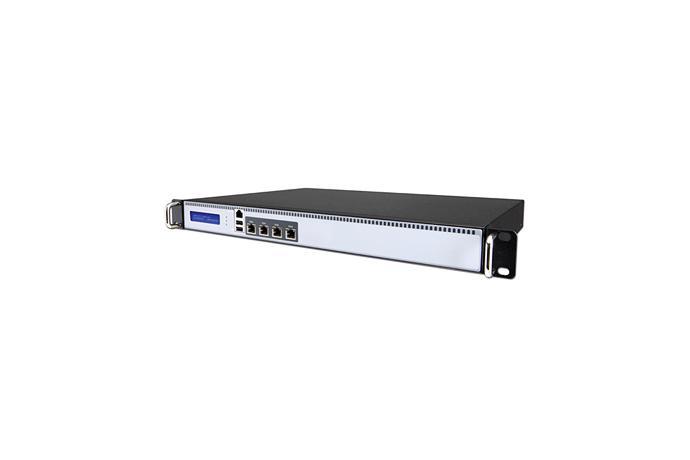

Dimensions 1U Rackmount, 428x44x300mm(W x H x D)
Weight 4Kg

Platform

Processor Intel PineView D425/D525 Processor
Chipset Intel ICH8M

System Memory

Memory Type DDR3 800/1066/1333MHz SO-DIMM
Memory Capacity Up to 4GB DDR3 Memory

Network interface

6x Copper GbE(Intel82574L), w/ 1-Pair LAN Bypass

Storage

Storage Interface 1x SATA II HDD
CF 1x Compact Flash

Peripheral

USB 2x USB 2.0 Port (and 2xInternal)
Serial 1x Console Port(RJ45Type)
VGA 1x Internal VGA port

Expansion & Option Card

 4 Ports Copper 10/100Mbps Switch Card
 4 Ports Copper Gigabit Ethernet Switch Card
 1X Fiber 100Mbps Ethernet Card

Display

LEDs Power LED, HDD LED

Power

Watt 150W Single ATX Power
Input 100V~240V AC, 47~63MHz auto range

Environmental Parameters

Temperature Operating 0~40℃, Storage -20~75℃
Humidity(RH) Operatiog 5~85%, Storage 5~95%
