Intel Cedarview-D2550 dual core 1.86GHz
 2x DDR3 1066/1333MHz SO-DIMM Memory
 4x Copper Gbe(Intel82583V)
 1x SATAII HDD
 1x SATADOM

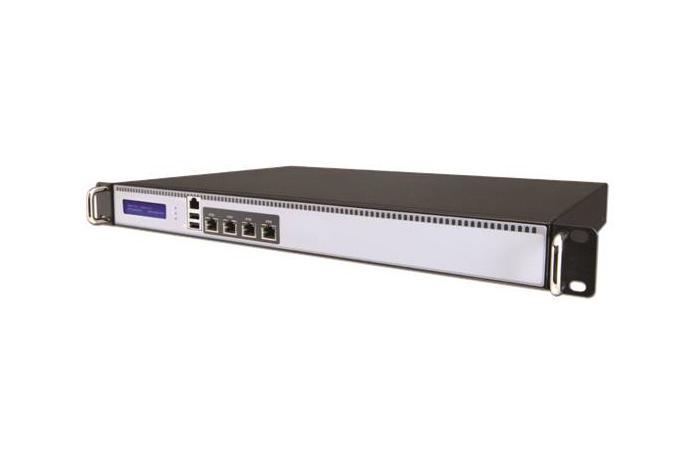

 1U Rack mountable



 Specification

Form factor

Dimensions 1U Rackmount, 428x44x300mm(W x H x D)
Weight 4Kg

Platform

Processor Intel Cedarview-D2550 Processor
Chipset Intel NM10

System Memory

Memory Type DDR3 800/1066/1333MHz SO-DIMM
Memory Capacity Up to 4GB DDR3 Memory

Network interface

4x Copper Gbe(Intel82583V)

Storage

Storage Interface 1x SATA II HDD
ETC 1x SATADOM

Peripheral

USB 2x USB 2.0 Port
Serial 1x Console Port(RJ45 Type)
VGA 1x Internal VGA port

Expansion & Option Card

4 x Copper 10/100Mbps Switch Card
1 x Fiber 100Mbps Ethernet Card

Display

LEDs Power LED, HDD LED, Status LED
Module LCD(2x16 Character, BLUE)

Power

Watt 100W Single ATX Power Supply
Input 103V~240V AC 50~60MHz auto range

Environmental Parameters

Temperature Operating 0~40℃, Storage -20~75℃
Humidity(RH) Operatiog 5~85%, Storage 5~95%
