• Support All LGA 775 CPU
• 2 DIMMs DDR3 (Dual-channel)
• 6 GbE ports / 2 x LAN Bypass
• Expandable with 4 GbE ports (RJ45 or SFP)



 Specification

Form factor

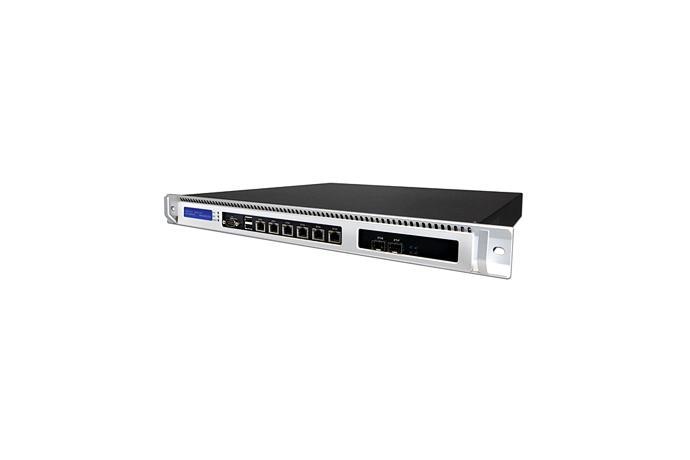

Dimensions 1U Rackmount, 428x44x405mm(W x H x D)
Weight 5Kg

Platform

Processor Intel Core 2 Quad, Core 2 Duo, Pentium Dual core, Celeron
Front Side Bus 1333MHz
Chipset Intel G41, ICH7R

System Memory

Memory Type DDR3 800/1066/1333MHz DIMM
Memory Capacity Up to 4GB DDR3 Memory

Network interface

6x Copper GbE(Intel82574L), w/ 2-Pair LAN Bypass

Storage

Storage Interface 1x SATA II HDD
CF 1x Compact Flash

Peripheral

USB 2x USB 2.0 Port (and 2x Internal)
Serial 1x Console Port
VGA 1x Internal VGA port

Expansion & Option Card

 2x Fiber GbE Card
 4x Fiber GbE Card

Display

LEDs Power LED, HDD LED
Module LCD(2x16 Character, BLUE)

Power

Watt 300W Single ATX Power
Input 100V~240V AC 47~63MHz auto range

Environmental Parameters

Temperature Operating 0~40℃, Storage -20~75℃
Humidity(RH) Operatiog 5~85%, Storage 5~95%
