Intel® Sandy/Ivy Bridge-EP
 Up to 64GB DDR3 Memory
 2x Copper GbE
 1 x Compact Flash
 2x SATAII HDD
 800W (1+1) Redundant Power Supply
 Power LED, HDD LED, Status LED



 Specification

Form factor

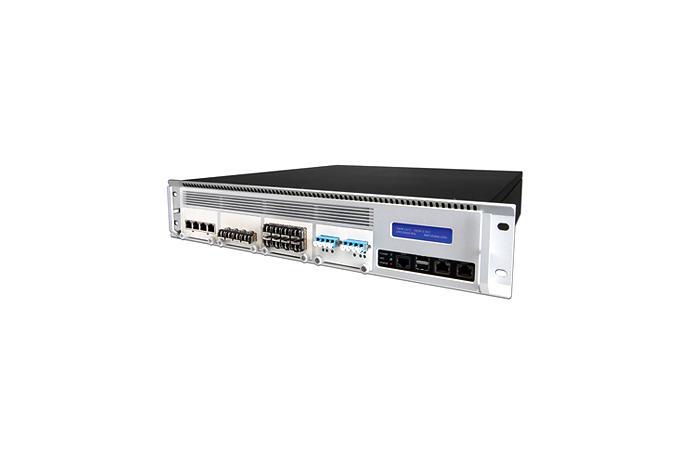

Dimensions 2U Rackmount, 440x88x550mm(W x H x D)
Weight 13Kg

Platform

Processor Intel Xeon Processor(E5-2600 series)
Chipset Intel C602J

System Memory

Memory Type DDR3
Memory Capacity 64GB

Network interface

2x Copper GbE(Intel82574L)

Storage

Storage Interface 2x SATA II HDD
CF 1x Compact Flash

Peripheral

USB 2x USB 2.0 Port
Serial 1x Console Port(RJ45 Type)
VGA 1x Internal VGA port

Expansion & Option Card

 4x Fiber GbE, w/LAN Bypass or w/o LAN Bypass
 8x FIber GbE
 4x Copper GbE w/LAN Bypass
 8x Copper GbE
 2x Fiber 10 GbE w/LAN Bypass or w/o LAN Bypass
 4x Fiber 10 GbE

Display

LEDs Power LED, HDD LED, Status LED
Module LCD(2x16 Character, BLUE)

Power

Watt 800W Redundant ATX Power
Input 103V~240V AC 50~60MHz auto range

Environmental Parameters

Temperature Operating 0~40℃, Storage -20~75℃
Humidity(RH) Operatiog 5~85%, Storage 5~95%
