Intel® Atom Rangeley processor C2000 Series SOC(C2358/C2518)
 Up to 16GB DDR3 Memory
 2 x GbE (Intel® i210AT)
 4 x GbE w/ 2pair bypass (Marvell® 88E1543)
 1 x Compact Flash(C2518 SKU
 Power LED / HDD LED / Status LED
 12V 65W Adapter



 Specification

Form factor

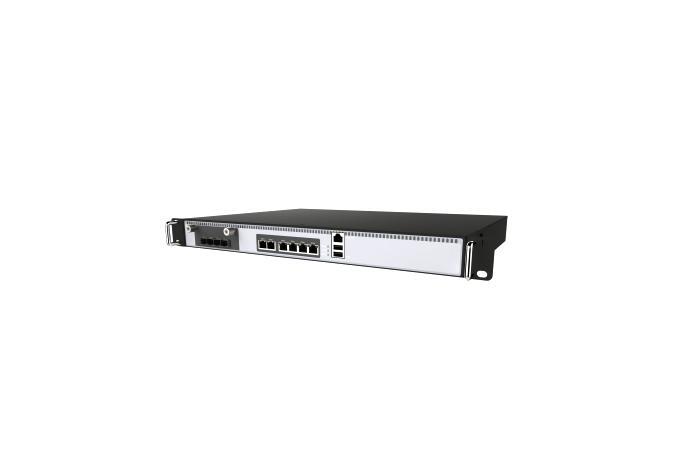

Dimensions 1U Rackmount, 430x44x300mm(W x H x D)
Weight 3KG

Platform

Processor Intel® Atom processor C2000 Series SOC(C2358/C2518)

System Memory

Memory Type DDR3 ECC/Non-ECC 1066/1333 MHz 2 slot
Memory Capacity Up to 16GB DDR3 Memory

Network interface

2 x GbE (Intel® i210AT)
4 x GbE w/ 2pair bypass (Marvell® 88E1543)

Storage

Storage Interface 1 x SATA II
ETC 1 x SATADOM with pin7 power support

Peripheral

USB 2 x USB 2.0 Port
Serial 1 x Console Port (RJ45Type)
VGA optional

Expansion & Option Card

 4 x Fiber GbE w/2 pair Bypass or w/o Bypass
 8 x FIber GbE w/o Bypass
 4 x Copper GbE w/2 pair Bypass
 8 x Copper GbE w/o Bypass
 2 x Fiber 10 GbE w/1 pair Bypass or w/o Bypass

Display

LEDs Power LED / HDD LED / Status LED

Power

Watt 12V 65W Adapter
Input 100V~240VAC 47~63MHz auto range

Environmental Parameters

Temperature Operating 0~40℃, Storage -20~70℃
Humidity(RH) Operatiog 5~85%, Storage 5~95%
