Intel Xeon Haswell E3-1200 v3 Series
 Up to 32GB DDR3 Memory (4 slots)
 1 x Copper GbE (USB to LAN)
 2 x SATA II HDD
 LCD (2 x 16 Character
 Power LED / HDD LED / Status LED
 380W Redundant Power



 Specification

Form factor

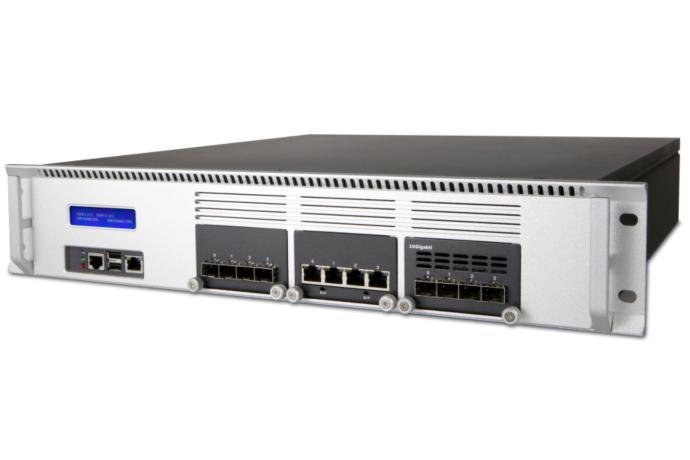

Dimensions 2U Rackmount, 430(W) × 88(H) x 450(D)
Weight 10KG

Platform

Processor Intel Xeon Haswell E3-1200 v3 Series
Chipset Intel C226

System Memory

Memory Type DDR3 1066/1333/1600MHz Unbuffered ECC DIMM
Memory Capacity Up to 32GB DDR3 Memory (4 slots)

Network interface

1 x Copper GbE (USB to LAN)

Storage

Storage Interface 2 x SATA II HDD
CF 1 x Compact Flash

Peripheral

USB 2 x USB 2.0 Port
Serial 1 x Console Port (RJ45Type)
VGA 1 x Internal VGA port

Expansion & Option Card

 4 x Fiber GbE w/2 pair Bypass or w/o Bypass
 8 x FIber GbE w/o Bypass
 4 x Copper GbE w/2 pair Bypass
 8 x Copper GbE w/o Bypass
 2 x Fiber 10 GbE w/1 pair Bypass or w/o Bypass

Display

LEDs Power LED / HDD LED / Status LED
Module LCD (2 x 16 Character)

Power

Watt 380W Redundant Power
Input 100V~240V AC 50~60MHz auto range

Environmental Parameters

Temperature Operating 0~40℃, Storage -20~75℃
Humidity(RH) Operatiog 5~85%, Storage 5~95%
