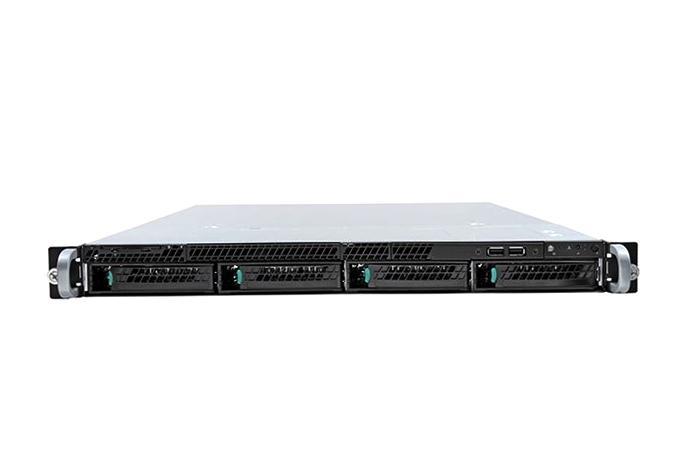

An integrated 1U rack system featuring an Intel® Server Board S1200V3RPO with with Intel® C224 chipset supporting four 3.5” hot-swap drives, dual 1 GbE LAN, four DIMM Sockets, and one 350W Fixed power supply.



 Specification

Form factor

Dimensions 1U Rackmount, 438x43x554mm(W x H x D)
Weight 7Kg

Platform

Processor Intel Xeon E3-1200v3 Processor
Chipset Intel C224

System Memory

Memory Type DDR3 ECC UDIMM
Memory Capacity 32GB

Network interface

2 x Intel i210 Gigabit Ethernet

Storage

Storage Interface 4 x 3.5” Hot-Swap SATA HDD

Peripheral

USB 2 x USB 2.0 Ports(Front), 2 x USB 3.0 Ports(Rear), 2 x USB 2.0 Ports(Rear)
VGA 1 x VGA Port(Rear)

Expansion & Option Card

One Full-Height riser with x16 connector

Display

LEDs Power LED, HDD LED, Status LED, System ID LED, NIC LED

Power

Watt 1 x 350W AC PSU

Environmental Parameters

Temperature Operating 10~35℃
