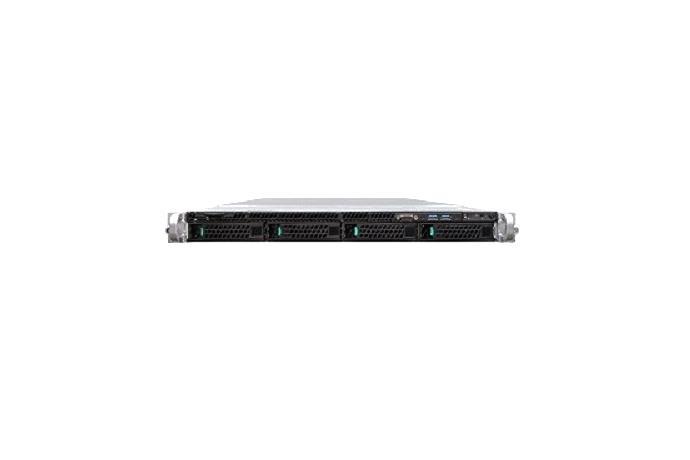

Integrated 1U system featuring an Intel® Server Board S2600WT2 supporting four 3.5 inch hot-swap drives, dual 1-GbE LAN, 24 DIMMs, one 750W redundant-capable power supply, enterprise class I/O, with built in discrete management network interface.

 Specification

Form factor

Dimensions 1U Rackmount, 43.2 x 439 x 769
Weight 12.3kg

Platform

Processor Intel Xeon E5-2600 v3 Processor
Chipset Intel® C612 Chipset

System Memory

Memory Type DDR4 ECC RDIMM, LRDIMM 24Dimm
Memory Capacity Up to 3072GB

Network interface

2 x Intel i350 Gigabit Ethernet

Storage

Storage Interface 4 x 3.5” Hot-Swap SAS/SATA HDD

Peripheral

USB 2 x USB 3.0 Ports(Front), 3 x USB 3.0 Ports(Back)
Serial 1 x RJ45
VGA 1 x VGA Port(front), 1 x VGA Port(Rear)

Expansion & Option Card

2 x PCIe3.0x16, I/O module, Dedicated RAID Card Slot

Display

LEDs Power LED, HDD LED, Status LED, System ID LED, NIC LED

Power

Watt 1+0 x 750W AC PSU (1+1 option)

Environmental Parameters

Temperature Operating 10~35℃
Humidity(RH) 50% ~ 90%
