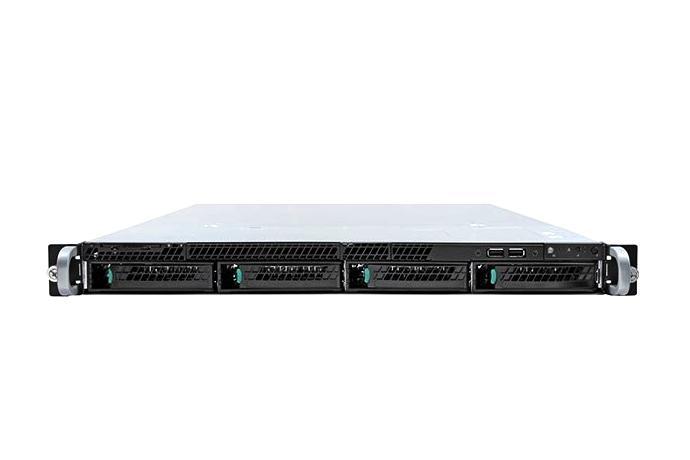

An integrated 1U rack system featuring an Intel® Server Board S1200SPO with Intel® C236 chipset supporting four 3.5” hot-swap drives, dual 1 GbE LAN, four DIMM Sockets, and two 450W redundant power supplies.



 Specification

Form factor

Dimensions 1U Rackmount, 43 x 438 x 554
Weight 7kg

Platform

Processor Intel Xeon E3-1200 v5,6 Processor
Chipset Intel C236

System Memory

Memory Type DDR4 ECC UDIMM
Memory Capacity Up to 64GB

Network interface

2 x Intel i210 Gigabit Ethernet

Storage

Storage Interface 4 x 3.5” Hot-Swap SATA HDD

Peripheral

USB 2 x USB 3.0 Ports(Front), 2 x USB 3.0 Ports(Rear), 2 x USB 2.0 Ports(Rear)
Serial 1 x Serial
VGA 1 x VGA Port(Rear) 1 x DP Port(Rear)

Expansion & Option Card

1 x PCIe3.0x16, I/O module, Dedicated RAID Card Slot

Display

LEDs Power LED, HDD LED, Status LED, System ID LED, NIC LED

Power

Watt 2 x 450W AC PSU

Environmental Parameters

Temperature Operating 10~35℃
Humidity(RH) 50% ~ 90%
