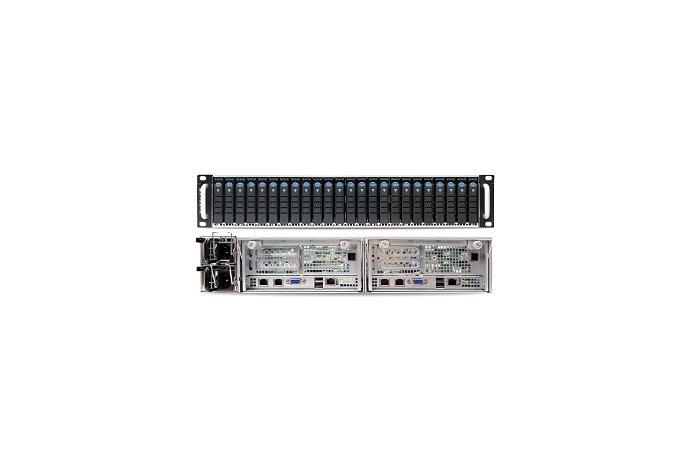

• High-availability storage server optimized for mission-critical, enterprise-level storage applications
• Fully redundant, fault-tolerant system supporting hot swappable controller nodes and storage drives
• Two compute nodes, Active-Active configuration, each supporting two Intel® Xeon® Processors E5-2600 v3 Product Family and up to 512GB of DDR4 memory
• 10GbE, PCIe NTB or SAS link between nodes for communication and fail-over
• Built-in LSI SAS3x36R SAS expander per node
• Intel® Trusted Platform Module (TPM) header to support Intel® Trusted Execution Technology (TXT)



 Specification

Form factor

Dimensions 2U Rackmount, 88 x 482 x 815
Weight 41kg

Platform

Processor Intel Xeon E5-2600 v3 Processor(2S per node)
Front Side Bus test
Chipset Intel® C612 Chipset

System Memory

Memory Type DDR4 ECC RDIMM, LRDIMM 16Dimm (per node)
Memory Capacity Up to 1024GB (per node)

Network interface

2 x Intel i350 Gigabit Ethernet(per node)

Storage

Storage Interface 24 x 2.5” Hot-Swap SAS/SATA HDD

Peripheral

USB 2 x USB 3.0 Ports(Rear)
VGA 1 x VGA

Expansion & Option Card

PCIe 3.0 5 x 8 (4 x HHHL, 1 x FHHL)

Display

LEDs Power LED, Warning LED

Power

Watt 2 x 1200W AC PSU

Environmental Parameters

Temperature 0° - 35°C
Humidity(RH) 5% - 95% (38°C) non-condensing
