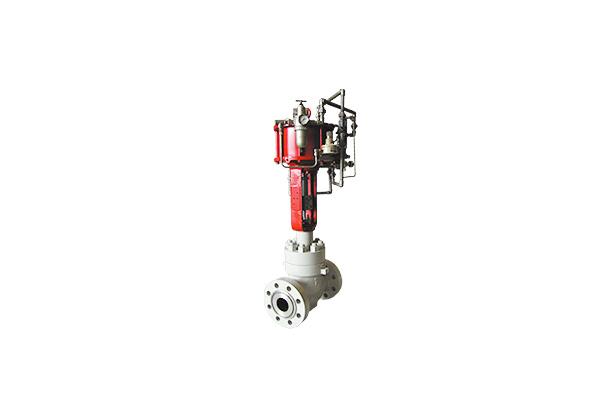

Body type

550G: Globe type

501G: Globe type

560G: Angle type

511G: Angle type

Body size

1"(25A) to 18"(450A)

1"(25A) to 18"(450A)

Body rating

ANSI Class 150 to 2500, JIS10K to 63K

ANSI Class 150 to 2500, JIS10K to 63K

Fluid temperature

-196 to +538°

-196 to +538°

Connections

Flanged (RF,RTJ), Butt Weld, Socket Weld etc.

Body materials

SCPH2/WCB,SCPH21/WC6,SCPL1/LCB,SCS13A

/CF8,SCS14A/CF8M,etc.

Trim materials

SUS410/410SS,SUS630/SCS24,SUS316/CF8M,etc.

Rangeability

50: 1 to 20:1

50: 1 to 20:1

Flow characteristics

Linear, Modified Linear, ModifiedEq%

Linear,Eq%

Leakage

Metal seat

ANSI Class IV, V or MSS-SP-61

Soft seat

Bubbletight ANSI Class VI

Actuator combination

5200LA: Pneumatic Diaphragm Actuator

6300LA: Pneumatic Cylinder Actuator

3500LB,3620LA: Solid State Electronic Actuator

3800LA: Microprocessor Actuator
