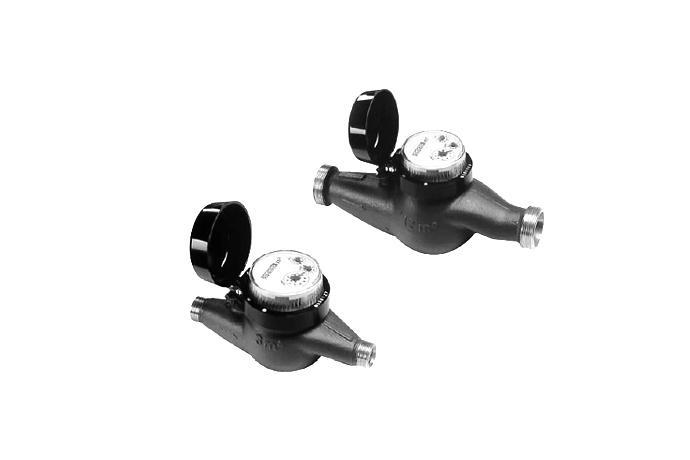

The M150 multi-jet meter operates on the velocity principle where water enters the measuring chamber through a number of ports and drives a rotor. The velocity of the rotor is proportional to the flow. Available in sizes 15mm to 40mm with nominal flow rates of Qn 1.5m³/h to Qn 10m³/h.

ㆍ The meter has a vacuum sealed dry register
ㆍ Robust stamped copper alloy body to ensure meter resistance to corrosion
ㆍ Sealed external calibration screw for ease of regulation
ㆍ Opaque lid for shock and atmospheric protection
ㆍ The magnetic drive is unaffected by external magnetic interference
ㆍ The register is resistant against dust and condensation
ㆍ Conforms to ISO 4064 Class B
ㆍ Both cold and warm water versions are available
ㆍ Pulse output available providing access to management information
ㆍ Operating temperature for cold water of 40 C and warm water of 90 C
ㆍ Maximum working pressure of 16 bar
