KOMORI CHAMBON
DELIVERY solutions
모델명
시리즈
CONVERTING
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
제조사/판매자에게 문의 바랍니다.
제품 상세 설명
Manage blanks at high speeds, whatever their layout and dimensions or cardboard specifications.
Komori-Chambon designs and manufactures tailor-made solutions from A to Z: transfer, spreader, shingling and stacking.
Deliver 100% good blanks with an optional diverter coupled with an optical inspection device.
Optimize your production with automated palletization systems as option.
Komori-Chambon advantages :
- Maximum control and customizable delivery parameters (number of blanks, pile height) up to 450 m/mn
- Independent streams management and optional independent lifts (Multilift system) combined with diverter
- Custom design by application and blank characteristics thanks to longstanding experience
- Flexible configuration (inline installation after Komori-Chambon or OEM die-cutter / offline after platen die-cutter…)
Main Applications
General Folding, Liquid packaging, Tobacco, Pharma / Cosmetics
Komori-Chambon expertise
|
Comprehensive know-how Komori-Chambon designs taylormade solutions for each delivery step. We provide either full delivery sections or separated modules which we integrate into your production line. |
|
High speed production 450 m/mn is the new speed standard defined by Komori-Chambon, with flawless stacks ready to ship. Boost your productivity. |
|
Extreme versatility Heat not Burn blanks, bricks or pizza boxes : Komori-Chambon gathered a long experience allowing a total control whatever the blank type. |
|
Maximum output Our delivery solutions are designed for an intensive use 365 days per year. The optional palletizers will allow you to further push the limits. |
Production flow insights
|
▼ |
- The blanks which have just been cut and stripped are separated longitudinally. In liquid packaging applications, the blanks are partially cut and separated by the transfer module - They are transfered from the rotary die-cutter to the spreader for the next steps - Depending on the application, the transfer module can integrate various equipments such as flap breakers, vacuum belts or a non-overlapping configuration. |
|
|
▼ |
- The blanks are separated transversely by the spreader and are guided into parallel flows - The spreader also allows the sorting and the evacuation of faulty blanks thanks to a 2-way blanks management. - The stacker is then managed bycan handle individual flows (up to 10) - Several configurations are available for an efficient control of any type of blank (kickers, slow-down function…) |
|
|
▼ |

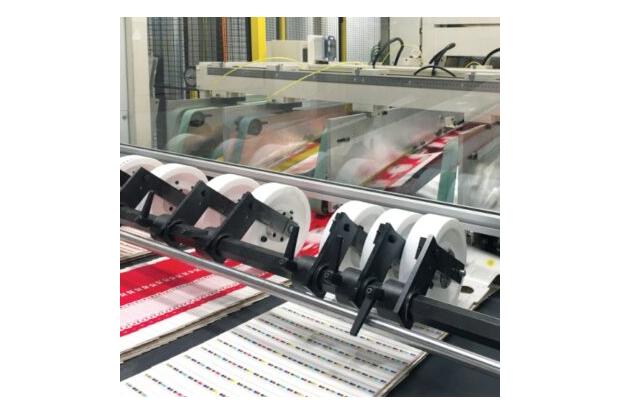

- The ejected blanks form a shingle along each flow on a first conveyor - The blanks are counted and precisely handled according to adjustable parameters defined for the shingle (gap between blanks) - The progress of each shingle is controlled along the second conveyor according to the stack creation and evacuation |
|
|
|
- The blanks are dropped at the end of the second conveyor into the stacker - Jogger bars ensure neat stacks - When the stack is complete (complying with the predefined number of blanks and height), it is pulled down by the lift and evacuated onto the final conveyer belt - The next shingle which was put on hold on the second conveyor is then released for the next stack. |
Available configurations
|
INLINE In a full inline configuration, the delivery is installed right after the rotary die-cutter following itself the printing section. This configuration allows the highest productivity, without any flow interruption. The delivery solution can be installed as a whole, or split in various modules (transfer or stacker only). The installation can be realized after OEM equipment.
|
|
OFFLINE The Komori-Chambon delivery modules can be installed offline after a rotary die-cutter or a web platen. |
