Fig no.

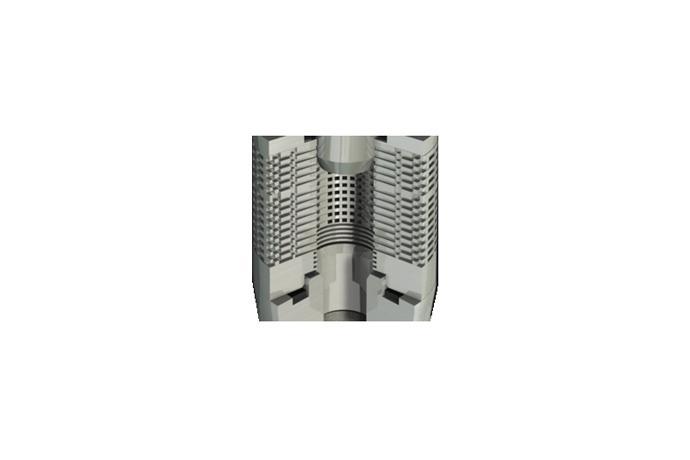

HEST-IV

Pressure rating
? / ? lbs


Size range
2 - 24

Features
Design: Straight, Angle
Service: Velocity, Cavitating condition
Leakage class: IV, V
Cv range: 5.4 - 2300
Flow characteristic: Lineair, Mod. Eq. %
Rangeability: Per Application
