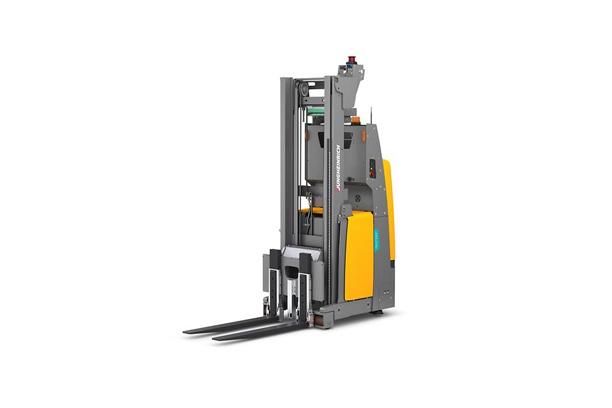

A compact and versatile Automated Guided Vehicle (AGV), our EKS 215a is the perfect choice for efficient mixed operations with manual trucks and pedestrians in warehouses and production areas.
The 24-V energy concept with a lithium-ion battery and automatic charging function ensures maximum flexibility in addition to the modular mast concept, while adjustable forks and a high residual capacity facilitate the handling of special load carriers in stations that cannot be driven under as well as delivery in racks.
A future-proof safety concept with integrated personal protection sensors guarantees a high level of safety in mixed operation and the user-friendly HMI touch display simplifies the interaction between man and machine.
Automate your manual processes with our innovative all-rounder – the EKS 215a.
✔ Versatile, compact AGV for safe use in mixed operations
✔ Lifting height up to 6 m and adjustable forks for high flexibility
✔ Simple operation with intuitive interaction options
✔ Economical 24/7 operation thanks to lithium-ion technology
✔ Simple connection to ERP systems via Jungheinrich logistics interface
Li-Ion
|
No worries. No compromise.
With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
|
|
100 % satisfaction. Guaranteed.
We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.
|
Features
Comprehensive automated components and precise navigation
- AGV is based on a series of components for flexible automation – even in confined spaces.
- Optimum design to meet the requirements for automating manual processes in warehouses and production areas.
- Precise laser navigation using reflectors installed on the travel route – for maximum transport efficiency.
Compact design
- Extremely compact truck dimensions due to the optimum combination of physical and virtual footprint.
- Perfectly suited to narrow working aisle widths (Ast) thanks to maximum maneuverability with low space requirement.
Lithium-ion technology
- 24-V lithium-ion technology with optional automatic charging.
- High availability thanks to extremely short charging times.
- Active energy and battery management.No battery exchange required.
- Zero maintenance in comparison with lead-acid batteries.
- No charging rooms or ventilation is required as there is no build-up of gas.
Intelligent safety functions
- Depending on the speed and steering angle, standard personal protection scanners scan the travel route for obstacles in the drive direction and load direction.
- Protection against damage through integrated safety sensors below the truck frame.
- Smart safety concept with protective and warning fields for efficient layout planning.
- The truck stops automatically in front of obstacles in its path.
- Scanning ahead for obstacles when cornering.
- Emergency disconnect on the truck and emergency control panel.
High level of process reliability in the warehouse
- A quick overview of the status of pending transport tasks is possible on the control panel and on the HMI.
- Prioritized orders can be entered and processed in the corresponding order.
- Depending on the project-specific requirements, individual customer functions can be specially implemented and activated for the respective system.
Wide range of applications
- Use in mixed operation, in a new build, or integrated into an existing factory structure.
- Transport of special load carriers closed pallets as well as the operation of stations that cannot be driven under using adjustable forks.
- Connection to existing WMS / ERP system via Jungheinrich logistics interface.
Intuitive interface
- The status is display at a glance.
- 7-inch display with touch function: error codes and handling recommendations for efficient fault rectification.
- Manual intervention option by the operator: AGV can be sent to charge, park or a service location and orders can be specified directly on the display.
Extended mast grid and increased residual capacity
- Wide range of masts for flexible adaptation to the warehouse layout.
- Higher payload with a smaller footprint and simultaneous increase in residual capacity.
Model Overview
Model |
Load Capacity |
Lift height |
Travel speed |
Overall length |
Battery voltage |
EKS 215a |
1,500 kg |
6,000 mm |
7 km/h |
2,492 mm |
24 V |
