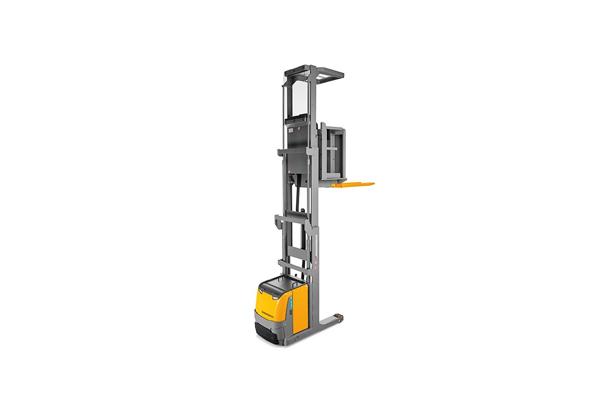

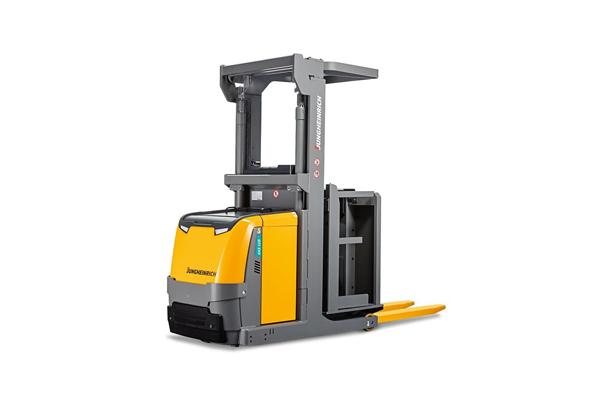

Our solid and ergonomic medium and high-level order picker EKS 110 is the ideal partner for order picking up to the third racking level in the wide aisle.
Thanks to a maximum platform height of 3 meters picking heights of up to 4.6 meters can be reached. Due to the self-supporting construction open and closed pallets can be transported.
The energy-saving 3.2 kW drive system impresses with high acceleration values and high battery capacity which allows long-term use even in multi-shift operation.
Safe working is ensured by the low entry height, the increased grip of the standing platform as well as optimum freedom of movement while entering and exiting.
A driver's seat designed for gentle work: With the intuitive arrangement of the controls, a 4-inch display, and three selectable driving programs.
Additionally, various equipment options and assistance systems make this order picker flexibly applicable. So the driver can simply hop on and drive off.
✔ Maximum picking performance with lowest energy consumption
✔ Powerful engine for high handling capacity
✔ Optionally with walk-on load section (L) or auxiliary lift (Z)
✔ WMS connection via Logistics Interface for optimised processes
✔ Picking height up to 4.6 m
Li-Ion
|
No worries. No compromise.
With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
|
|
100 % satisfaction. Guaranteed.
We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.
|
Features
Efficient order picking
- For the toughest applications thanks to a capacity of up to 1000 kg with a load center of 600 mm.
- Stable cornering thanks to a low load center provides a sense of security in every travel situation.

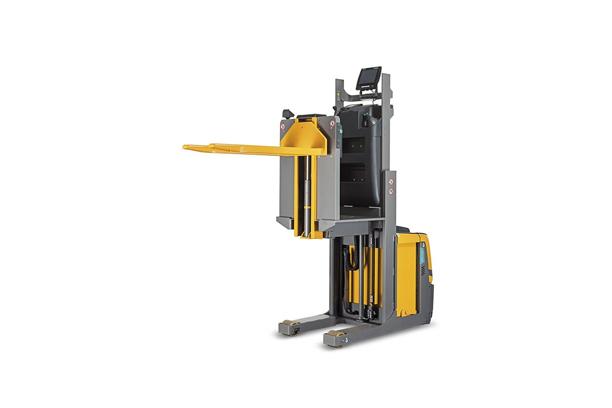

- Lowering the walk-on load section (optional) means that the platform and loading device are lowered to the lowest level possible when order picking – providing the lowest entry every time with no depositing of the pallet.
- Particularly with low lift heights and frequent entry and exit, the touch mode provides a fast way of reaching the next picking point.
- The touch mode is located on the backrest to enable direct access to the loading device.
Long operating times with lead-acid battery
- Energy-efficient 3-phase AC technology and high battery capacities allow for long operating times.
- Different battery sizes are available ranging from 375 Ah to 620 Ah.
- Lateral battery exchange for multi-shift operation (optional).
Available with lithium-ion technology
- High availability thanks to extremely short charging times.
- No battery exchange is required.
- Saving costs due to longer service life and low maintenance in comparison with lead-acid batteries.
- No charging rooms and ventilation are required as there is no build-up of gas.
High process reliability thanks to WMS connection
- The EKS 110 is linked to a warehouse management system (WMS) via Jungheinrich Logistics Interface: Orders are easily forwarded to the truck control system via the interface software so that additional functions are created.
- Process reliability thanks to real-time feedback to the WMS.
- Targeted reduction of safety risks, since the driving parameters can be influenced via the WMS.
- Ergonomic order picking via an additional display in the load direction.
- Saves time by confirming the orders with a push button.
Improved visibility
- Better visibility in poorly lit areas thanks to integrated dayLED daytime running lights (optional).
- LED working lights on the overhead guard can be used as additional running lights or to illuminate the racking when order picking (optional).
- The optional LED workstation lighting ensures that the operator position is well-lit.
- Floor spot – significant reduction of risk to collide in blind spots due to a red dot of light projected onto the floor approx. 3 m in front of the truck (optional).
Robust design
- High-quality stainless steel skirt raised extra high on the front panel.
- Impact-protected steel drive panel protects the components behind it.
- Optional rubber or steel bumper provides additional protection.

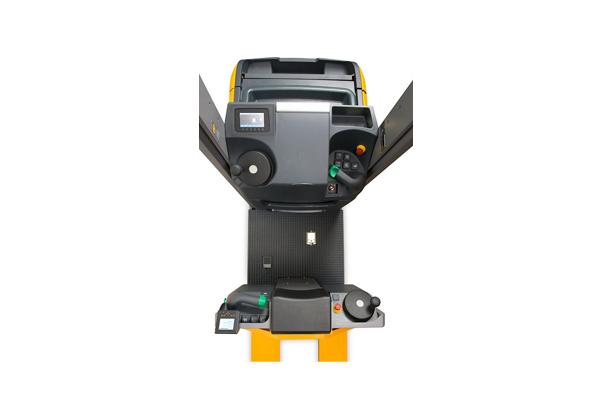

Ergonomic workstation
- Low entry height for easy entry and exit.
- Padded backrest for comfortable depositing of goods on the forks.
- A continuous comfortable rubber mat provides noticeable relief for the operator.
- The tilted steering wheel supports natural hand movements and thus protects the operator's joints.
- As an alternative to conventional steering, the optional jet pilot is also available, which enables intuitive and convenient operation similar to a car.

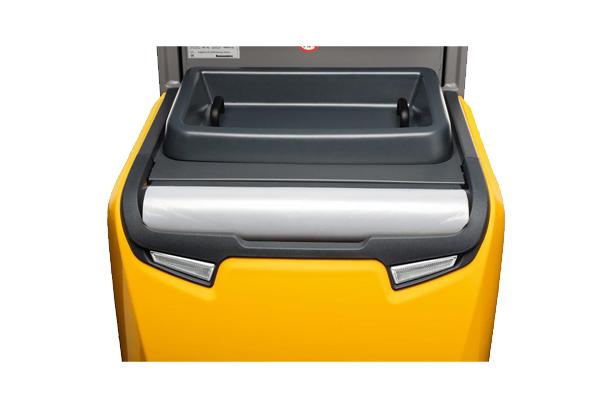

- Good storage capabilities are offered by the integrated DIN A4 holder and other storage compartments.
Model Overview
Model |
Load capacity |
Lift height |
Travel speed |
Overall length |
Battery voltage |
EKS 110 L 100 E |
1,000 kg |
2,800 mm |
10 km/h |
2,890 mm |
24 V |
EKS 110 L 160 E |
1,000 kg |
2,800 mm |
9 km/h |
2,890 mm |
24 V |
EKS 110 L 190 E |
1,000 kg |
2,800 mm |
9 km/h |
2,890 mm |
24 V |
EKS 110 L 280 ZZ |
1,000 kg |
2,800 mm |
9 km/h |
2,980 mm |
24 V |
EKS 110 Z 100 E |
1,000 kg |
2,800 mm |
10 km/h |
2,895 mm |
24 V |
EKS 110 Z 160 E |
1,000 kg |
2,800 mm |
9 km/h |
2,895 mm |
24 V |
EKS 110 Z 190 E |
1,000 kg |
2,800 mm |
9 km/h |
2,895 mm |
24 V |
EKS 110 Z 280 ZZ |
1,000 kg |
2,800 mm |
9 km/h |
2,985 mm |
24 V |
