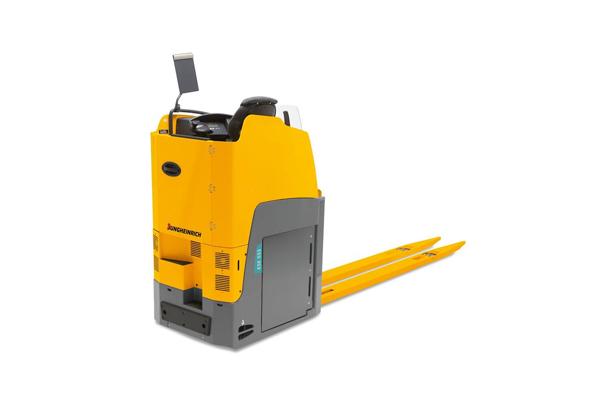

The powerful and ergonomic ESE 533 electric sideways-seated pallet truck is ideal for the transport of heavy cargo over long distances.

It can move up to three pallets at once. With its two fast-reacting drive motors, it reaches high speeds effortlessly, even with heavy loads.

Our focus on ergonomic work does not only ensure the comfort of the operator but directly contributes to the safety in your warehouse.

The travel speed, brakes and deadman switch are all controlled by easily reached pedals.

Frequent direction changes are easy to manage and due to the sideways seating position of the operator, perfect visibility in all directions is ensured.

Powerful batteries and the simple lateral battery exchange guarantee the quick availability of the ESE 533. Long and intensive work hours pose no problem.



✔ Multi-pallet transportation (of up to 3 pallets)

✔ Ergonomic operator position layout

✔ 360° steering for quick direction change

✔ 2-drive motors and lateral battery exchange

✔ 48-V 3-phase AC technology for dynamic movement





Features

Greater efficiency with 3-phase AC technology

• Powerful acceleration.
• No carbon brushes – maintenance-free drive motor.
• Energy recovery with regenerative braking.



Powerful batteries

• 48 V /1000 Ah EPzB.
• Quick and easy lateral battery exchange.



Lower maintenance costs

• Service-friendly components and a robust design ensure lower maintenance costs in the long term.
• The drawbars are easy to adjust.
• Quick access to all components through large, easy-to-open service hatches.
• Thermal separation of the drive motor, hydraulics and electrical systems.
• Maintenance-free 3-phase AC drives motor without carbon brushes.

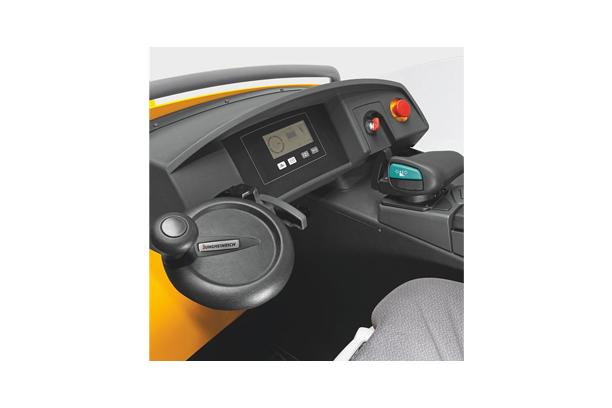

Easy-to-read operator display

• High-quality control instrument for displaying the most important operating data.
• Display of direction of travel and wheel position.
• Battery status, with a display of time remaining until the next charge is required.
• Speed.
• Elapsed distance.
• 3 adjustable travel programs for individual adjustment to any requirements.
• Operating hours and time of day.



Load sections for lifting pallets lengthways and traverse

• The load sections come in different versions to suit different applications.
• Various fork lengths.



Ergonomic cockpit

• Adjustable seat (seating position/body weight) for all operators.
• Individual foot height adjustment.
• The automotive layout of the pedals.
• Generous space.
• 360° 3-phase AC steering with optimized steering wheel position.
• Steering wheel adjustment.



Easy operation with a solo PILOT

• For activating all hydraulic functions, also selects the direction of travel and the horn.
• All the controls are within the operator's field of vision and are clearly designated for each specific function.
• Comfortable armrest.
