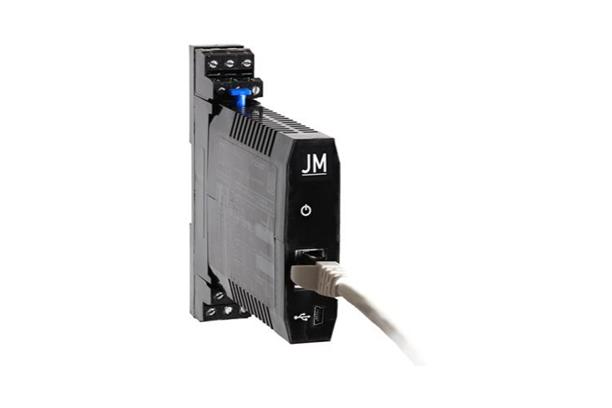

Simultaneous 4-channel acquisition in a 22.5mm package, reducing footprint to less than 6mm

Its 4 isolated Current or Voltage inputs each benefit from an independent sensor supply that can be activated by switch.

Its traversing Modbus TCP connection via an RJ45 makes it easy to upload data to local installations and/or the cloud.

It also serves as an entry point on the backplane RS485 bus to interrogate any device on this bus.

Hot pluggable	Universal power supply	Sensor supply	MODBUS-RTU

UHLIS 3020T0 Acquisition interface without display Inputs : 4 inputs 0-100mV Communication: USB, RS485 22.5mm box

UHLIS 3020TCP Acquisition interface without display Inputs : 4 inputs 0-100mV Communication: USB, RS485, Modbus TCP 22.5mm housing

UHLIS 3030T0 Acquisition interface without display Inputs : 4 inputs 4-20mA Communication: USB, RS485 Sensor supply 22.5mm box

UHLIS 3030TCP Acquisition interface without display Inputs : 4 inputs 4-20mA Communication: USB, RS485, Modbus TCP Sensor supply 22.5mm box
