Description of the product :

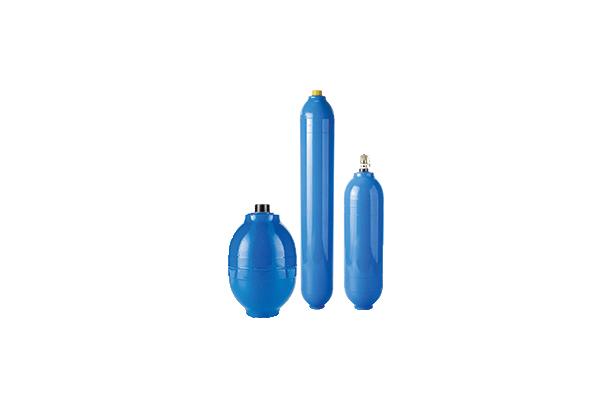

Using bladder-diaphragm (designed for working pressures up to 330 bar), these hydropneumatic accumulators represent a particularly attractive solution for mobile applications. Available for useful volumes from 0.7 to 4 Litres, the ACS(L) accumulators series are available as standard version for operating temperatures between -20°C and +100°C, and in “low temperature” version from -40°C to +100°C. All these accumulators are equipped with screw or charging valve, allowing verification and charging by the customer, but can also be supplied with a charging pressure P0 according to the customer’s request.

Characteristics et advantages :

• useful volume from 0.7 to 4 litres,
• max. pressure 250 or 330 bar depending on the model,
• extreme operating temperature as standard : -20°C to +100°C (NBR),
• «low temperature» version -40°C to +100°C (HNBR),
• long service life in number of cycles (by its bladder-diaphragm design),
• high operating ratio.

Applications :

• construction equipment,
• equipment handling,
• agricultural machinery,
• shock absorber,
• energy storage, pulsation clamper,
• thermal expansion.
