HPS ASIA LIMITED is a specialized hydraulic cylinder manufacturer, developing, manufacturing, and selling a wide range of hydraulic cylinders since 1990. It is a global supplier with an international network spanning 28 countries, providing high-quality standard and customized hydraulic solutions for diverse industrial sectors, including plastic and aluminum injection.

HPS ASIA LIMITED는 1990년부터 다양한 유압 실린더를 개발, 제조 및 판매해 온 유압 실린더 전문 기업으로, 전 세계 28개국에 진출한 국제적인 네트워크를 보유. 플라스틱 및 알루미늄 인젝션 산업을 포함한 광범위한 산업 분야에 고품질의 표준 및 맞춤형 유압 솔루션을 제공하는 글로벌 공급 기업.

Part Number	Description	WLL - Safety factor 5	WLL - Safety factor 4	Diameter	Standard L1	N.m (Foot LBS)	S (mm)	A (mm)	B (mm)	C (mm)	D (mm)	Weight (kg) (kg)

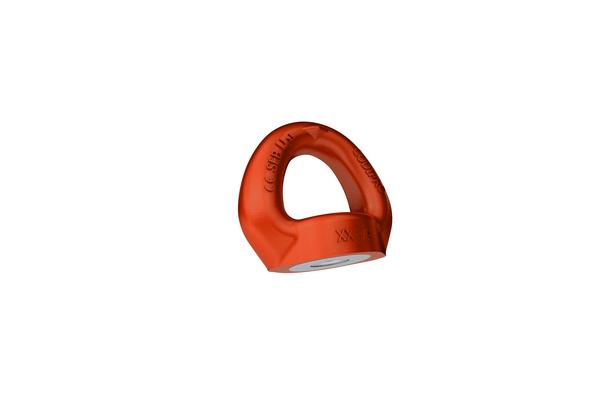

FE.SEB M 8 UP	Swivel eye nut M 8x1,25	0,4 to	0,5 to	M 8 (x1,25)	22	6	21	38	45	88	80	0.8
FE.SEB M 10 UP	Swivel eye nut M 10x1,5	0,5 to	0,7 to	M 10 (x1,5)	22	10	21	38	45	88	80	0.8
FE.SEB M 12 UP	Swivel eye nut M12x1,75	0,8 to	0,9 to	M 12 (x1,75)	22	15	21	38	45	88	80	0.8
FE.SEB M 16 UP	Swivel eye nut M 16x2	1,4 to	1,8 to	M 16 (x2)	22	50	21	38	45	88	80	0.8
FE.SEB M 20 UP	Swivel eye nut M 20x2,5	2 to	2,7 to	M 20 (x2,5)	35	100	36	55	70	115	106	2.5
FE.SEB M 24 UP	Swivel eye nut M 24x3	3,4 to	4,2 to	M 24 (x3)	48	160	40	77	94	168	155	6.3
FE.SEB M 30 UP	Swivel eye nut M 30x3,5	5,5 to	6,3 to	M 30 (x3,5)	48	250	40	77	94	168	155	6.3
FE.SEB M 36 UP	Swivel eye nut M 36x4	9 to	11 to	M 36 (x4)	48	320	40	77	94	168	155	6.3
FE.SEB U 038 UP	Swivel eye nut UNC 3/8"-16	1,200 LBS	1,500 LBS	UNC 3/8"-16	22	10 F.L	21	38	45	88	80	0.8
FE.SEB U 050 UP	Swivel eye nut UNC 1/2"-13	1,800 LBS	1,950 LBS	UNC 1/2"-13	22	15 F.L	21	38	45	88	80	0.8
FE.SEB U 058 UP	Swivel eye nut UNC 5/8"-11	3,200 LBS	4,000 LBS	UNC 5/8"-11	22	50 F.L	21	38	45	88	80	0.8
FE.SEB U 075 UP	Swivel eye nut UNC 3/4"-10	4,750 LBS	5,900 LBS	UNC 3/4"-10	35	100 F.L	36	55	70	115	106	2.5
FE.SEB U 100 UP	Swivel eye nut UNC 1"-8	7,500 LBS	9,300 LBS	UNC 1"-8	48	160 F.L	40	77	94	168	155	6.3
FE.SEB U 125 UP	Swivel eye nut UNC 1"1/4-7	12,200 LBS	13,800 LBS	UNC 1"1/4-7	48	250 F.L	40	77	94	168	155	6.3
