Material Spec.

- Bellows:  STS304

- Wire Braid: STS304

- Flange: SS400, STS304

Specifications

Manufactured by special bellows developed in korea, this joint is small but flexible,absorbing vibrations at the joints, which connect small pipes to the device. They are usually used in connecting pumps and pipes.

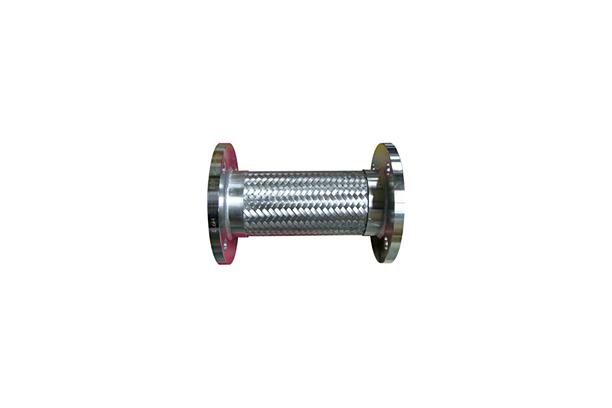

HK501

HK502

▶Construction : Weled lap-joint on bellows, swivel flange

▶Specification : use the lap-joint, for anti-vibration or
                      general pipeline

▶Press. Range : F.V ~ 30 bar

▶SIZE : 10A ~ 250A

▶Construction : Welded flange on bellows, fixed flange

▶Specification : Buliding new pipeline

▶Press. Range : F.V ~ 30 bar

▶SIZE : 10A ~ 250A

HK503

HK504

▶Construction : Connect hex nipple to bellows

▶Specification : Material A105, FCMB, STS316L, STS304

▶Press. Range : F.V ~ 50 bar

▶SIZE : 8A ~ 50A

▶Construction : Connect hex soket to bellows

▶Specification : Material A105, FCMB, STS316L, STS304

▶Press. Range : F.V ~ 50 bar

▶SIZE : 8A ~ 50A

 HK505

HK506

▶Construction : Connect weld union to bellows

▶Specification : Material A105, FCMB, STS316L, STS304

▶Press. Range : F.V ~ 50 bar

▶SIZE : 8A ~ 50A​

▶Construction : Connect thread union to bellows

▶Specification : Material A105, FCMB, STS316L, STS304

▶Press. Range : F.V ~ 50 bar

▶SIZE : 8A ~ 50A

 HK507

HK508

▶Construction : Connect male thread hex nipple to loose nut

▶Specification : Piping assembly is easy, for anti-vibration or
                      general pipeline

▶Press. Range : F.V ~ 50 bar

▶SIZE : 8A ~ 50A

▶Construction : Connect female thread nut to loose nut

▶Specification : Piping assembly is easy, for anti-vibration or
                      general pipeline

▶Press. Range : F.V ~ 50 bar

▶SIZE : 8A ~ 50A
