HMF-501 : Swivel Type |
HMF-502 : Fixed Type |
Material Spec. - Bellows : STS316L, STS304 - Wire Braid : STS304 - Flange : SS400, STS316L, STS304 - Lap Joint : STPG370, STS316L, STS304 | Specifications Application : Vibration absorption and preventing heat stress Press. Range : 0.1 bar ~ 30 bar Temp. Range : Max. 300℃ Service : Fresh Water, Exhaust Gas, Lub. Oil, Fuel Oil, etc |

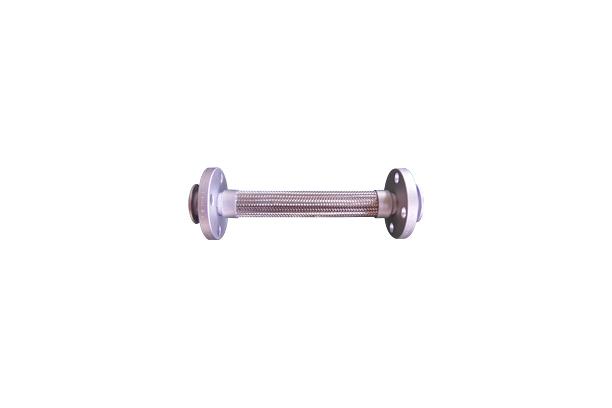

Model no. HMF-501 and HMF-502 are metallic flexible hoses and applied to the marine engine system.
These are used for to absorb the minute vibrations of the engine. The safety of these models is verified by using on ships over 20 years.
Furthermore these models passed all tests about the metallic flexible hose of ISO 10380 and have gained type approvals of each classification society.
