product Image

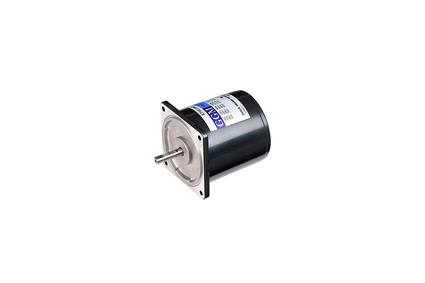

Induction Motor (40W (□90mm))
모델명
K9I□40NJ(-T
시리즈
AC Motor
전체보기
자료
메뉴얼-GGM-AC Motor-Induction Motor
구매정보
provider logo
(주)지지엠

기어드모터, 소형모터, 감속기, AC모터, DC모터, BLDC 등 기어드모터 제조업체

연락처
032-664-7790
이메일
ggm@ggm.co.kr
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매자가 아닙니다.법적고지 및 안내
제조사
(주)지지엠[바로가기]
제품 타입
기계
브랜드
-
SKU
131811
제품명
Induction Motor (40W (□90mm))
모델명
K9I□40NJ(-T, -T5), K9I□40NU(-T, -T5), K9I□40NL(-T, -T5), K9I□40NC(-T, -T5), K9I□40ND(-T, -T5), K9I□40NT(-T, -T5), K9I□40NH(-T, -T5), K9I□40NM(-T, -T5), K9I□40NV(-T, -T5), K9I□40NQ(-T, -T5), K9I□40NZ(-T, -T5)
사이즈
-
중량
-
제품 상세 정보

40W 연속정격, 4극

Model Voltage (V) Frequency (Hz) Current (A) Start T. (N*m/Kgf*cm) Rated T. (N*m/Kgf*cm) Speed (rpm Condenser (μF)
K9I□40NJ(-T, -T5) single-phase 100 50 0.86 0.21/2.1 0.315/3.15 1250 2
60 0.84 0.22/2.2 0.255/2.55 1550
K9I□40NU(-T, -T5) 110 60 0.65 0.19/1.9 0.255/2.55 1550 8
115 0.68 0.2/2
K9I□40NL(-T, -T5) 200 50 0.4 0.22/2.2 0.315/3.15 1250 3
60 0.41 0.255/2.55 1550
K9I□40NC(-T, -T5) 220 50 0.38 0.24/2.4 0.315/3.15 1250 2.5
60 0.37 0.255/2.55 1550
230 50 0.4 0.26/2.6 0.315/3.15 1250
60 0.38 0.255/3.55 1550
K9I□40ND(-T, -T5) 240 50 0.39 0.2/2 0.3/3 1300 2
K9I□40NT(-T, -T5) three-phase 200 50 0.39 1/10 0.3/3 1300 -
60 0.32 0.78/7.8 0.245/2.45 1600
K9I□40NH(-T, -T5) 220 50 0.33 0.95/9.5 0.29/2.9 1350 -
60 0.31 0.78/7.8 0.245/2.45 1600
230 50 0.41 1/10 0.29/2.9 1350
60 0.32 0.83/8.3 0.245/2.45 1600
K9I□40NM(-T, -T5) 380 50 0.18 1/10 0.29/2.9 1350 -
60 0.78/7.8 0.245/2.45 1600
K9I□40NV(-T, -T5) 400 50 0.18 1.15/11.5 0.29/2.9 1350 -
60 0.19 0.88/8.8 0.245/2.45 1600
K9I□40NQ(-T, -T5) 415 50 0.16 0.95/9.5 0.29/2.9 1350 -
60 0.14 0.72/7.2 0.245/2.45 1600
K9I□40NZ(-T, -T5) 440 50 0.19 1/10 0.29/2.9 1350 -
60 0.16 0.79/7.9 0.245/2.45 1600

* □ : SHAFT 형상 (S : STARIGHT, G : PINION)

* 삼상 380V이상 사양의 Motor는 Inverter와의 조합에서는 사용할 수 없습니다. Motor 권선의 절연이 열화되어 파손될 가능성이 있습니다.
