product Image

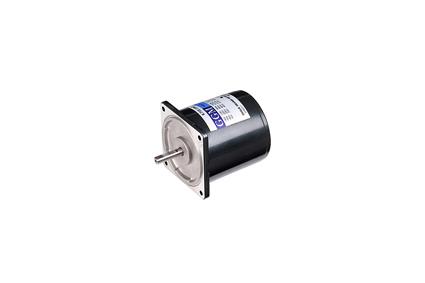

Induction Motor (40W (□80mm))
모델명
K8I□40FC
시리즈
AC Motor
전체보기
자료
카탈로그-GGM-AC Motor-Induction Motor(40W (□80mm))
구매정보
provider logo
(주)지지엠

기어드모터, 소형모터, 감속기, AC모터, DC모터, BLDC 등 기어드모터 제조업체

연락처
032-664-7790
이메일
ggm@ggm.co.kr
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매자가 아닙니다.법적고지 및 안내
제조사
(주)지지엠[바로가기]
제품 타입
기계
브랜드
-
SKU
131810
제품명
Induction Motor (40W (□80mm))
모델명
K8I□40FC, K8I□40FH, K8I□40FM
사이즈
-
중량
-
제품 상세 정보

40W 연속정격, 4극

Model Out Put (W) Voltage (V) Frequency (Hz) Current (A) Start T. (N*m/Kgf*cm) Rated T. (N*m/Kgf*cm) Speed (rpm Condenser (μF)
K8I□40FC single-phase 40 220 50 0.45 0.23 0.315 1250 2.5
2.30 3.15
60 0.43 0.23 0.255 1500
2.30 2.55
230 50 0.50 0.27 0.315 1250
2.70 3.15
60 0.45 0.24 0.255 1550
2.40 2.55
K8I□40FH three-phase 40 220 50 0.48 0.97 0.294 1300 -
9.70 2.90
60 0.35 0.71 0.245 1600
7.10 2.45
230 50 0.50 1.01 0.300 1300
10.1 3.00
60 0.37 074 0.245 1600
7.40 2.45
K8I□40FM 380 50 0.26 076 0.300 1300 -
7.60 3.00
60 0.20 0.66 0.245 1600
6.60 2.45

* □ : SHAFT 형상 (S : STARIGHT, G : PINION)

* 삼상 380V이상 사양의 Motor는 Inverter와의 조합에서는 사용할 수 없습니다. Motor 권선의 절연이 열화되어 파손될 가능성이 있습니다.
