• Self-lubricating plain bearing material
• High static load capacity (twice as much as standard GAR-MAX® bearings)
• Excellent shock and misalignment resistance
• Excellent contamination resistance
• Very good friction and wear properties
• Good chemical resistance
• Tested acc. to ASTM E595/ECSS-Q-ST-70-02C - Outgassing properties of materials used in Spacecraft equipment

AVAILABILITY
Bearing forms available in standard dimensions

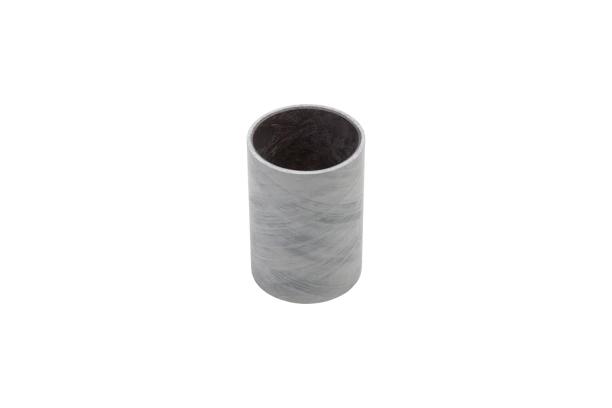

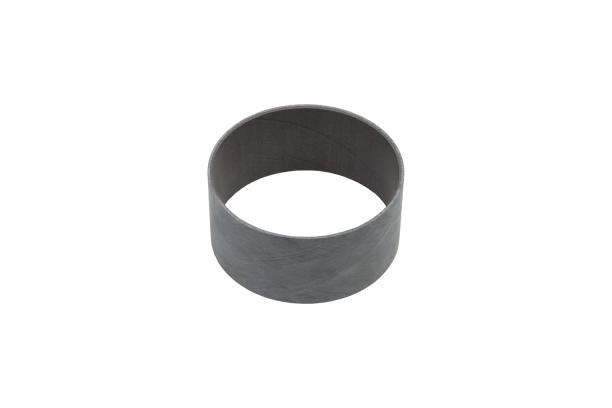

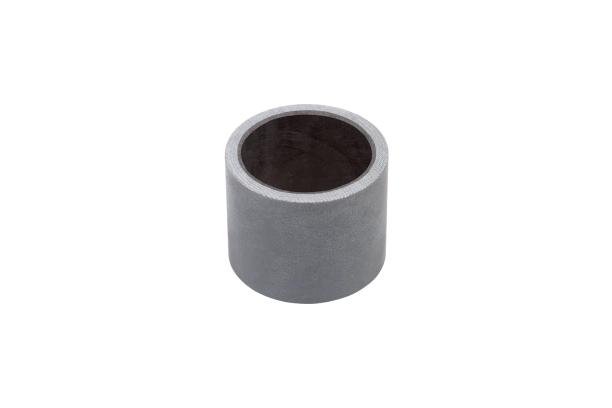

• Plain cylindrical bushes

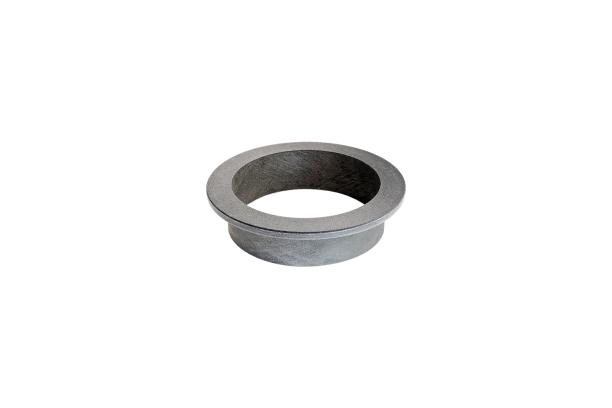

Bearing forms made to order: cylindrical bushes with non-standard lengths and wall thickness, flanged bearings, hexagonal and square bores, liner on outer diameter, customized bearing designs



	HSG
Dry Operation	★ Very Good
Lubricated Operation	✓ Fair
Greased Operation	✓ Fair
Machinable	Consult with Applications Engineer
RoHS Compliant	✓ Compliant
Standard Sizes	Available
