· MAX. Flow(Q)   81㎥/hr

· MAX. Head(H)   29m

· Motor Power   0.37kW~2.2kW (0.5~3HP)

· Available Power   3PH 380V~440V / 50&60Hz / 1PH 200V~230V / 50&60Hz




Description

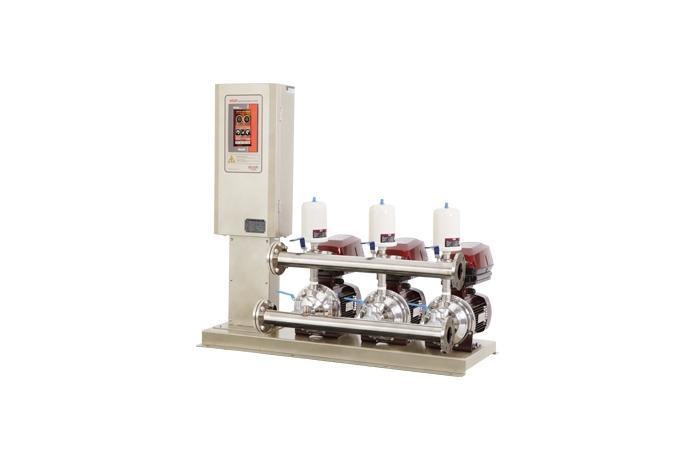

NSQP-2(3)DHM pumps are built on the basis of DHM pumps. The main difference between the DHM and  the NSQP-2(3)DHM pump is the variable frequency drive. Enhanced with the NSQ-Drive, NSQP-2(3)DHM  pump together with the appropriate sensor is turned into an intelligent, variable speed pumping system.

The NSQ-Drives adjust the motor speed which in turn provides constant pressure or differential pressure to the flow rate.

NSQP-2(3)DHM is also equipped with the 7" touch screen monitor that is embedded into the panel which  features the latest GUI.



Application

Pressure boosting systems

Domestic water supply systems

Cooling Systems

Air-conditioning systems

Small Industrial water supply systems

Horticultural irrigation system



Features

7” color LCD touch monitor

Each pump are individually controlled by NSQ drive.

High reliability (Multi-master control)

Constant discharge pressure

Reduced tank and panel size

Less wear of the system during operation

Compact assembly and installation

High reliability
