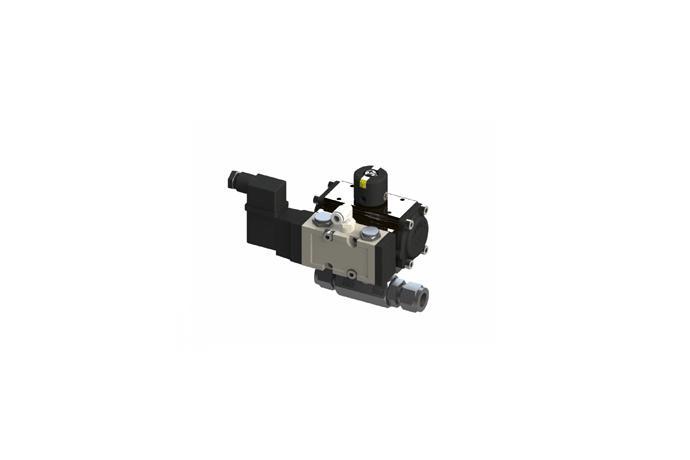

2-Way Ball Valve

- 2-Way Ball Valve

- Ferrule Connection

- Connection : Tube Fittings
- Model No.

   1/2” : AP2B-FR15-40D-00-S24D
   3/8” : AP2B-FR10-40D-00-S24D

- Working Pressure : 1000PSI for Water, Oil, Gas

- Leakage rate : < 1.0E-7 mbar l/s

- Housing material : Stainless steel (CF8M)

- Material flange : Stainless steel (CF8M)

- Material ball seat : P-TFE(standard) / R-TFE, TFM1600(option)

- Material drive packing : FKM / P-TFE(standard) / R-TFE(option)

- Operating temperature See the reference graph below

- Visual position indicator Position indicator
