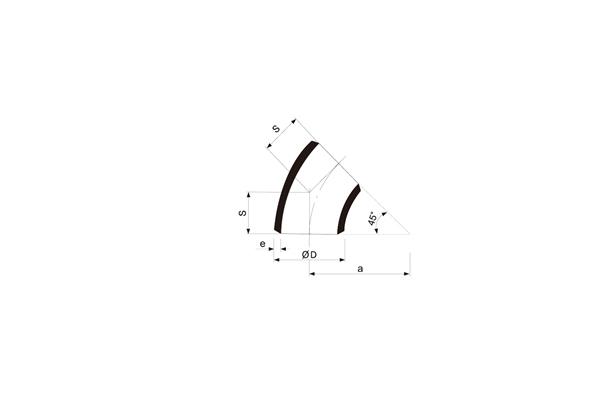

Elbows long radius 16 / 20 BAR(R~1.5D - 45º)
MATERIAL :
- NAVINIC 10® CuNi10Fe1Mn
- NAVINIC 30® CuNi30Mn1Fe
DIMENSION : EEMUA Pub. N。146
| Outside diameter of pipe ØD | Wall thickness | Radius | Theoretical weight | ||||||
|---|---|---|---|---|---|---|---|---|---|
| nominal inch | actual mm | 16Bar e mm | 20Bar e mm | 16Bar a mm | 20Bar a mm | 16Bar s mm | 20Bar s mm | 16Bar kg/piece | 20Bar kg/piece |
| SEAMLESS | |||||||||
| 1 | 30.0 | 2.5 | 2.5 | 38 | 38 | 22 | 22 | 0.06 | 0.06 |
| 1 1/4 | 38.0 | 2.5 | 2.5 | 48 | 48 | 25 | 25 | 0.09 | 0.09 |
| 1 1/2 | 44.5 | 2.5 | 2.5 | 57 | 57 | 29 | 29 | 0.13 | 0.13 |
| 2 | 57.0 | 2.5 | 2.5 | 76 | 76 | 35 | 35 | 0.23 | 0.23 |
| 2 1/2 | 76.1 | 2.5 | 2.5 | 95 | 95 | 44 | 44 | 0.38 | 0.38 |
| 3 | 88.9 | 2.5 | 2.5 | 114 | 114 | 51 | 51 | 0.54 | 0.54 |
| 4 | 108.0 | 3 | 3.0 | 152 | 152 | 64 | 64 | 1.05 | 1.05 |
| 6 | 159.0 | 3 | 3.5 | 229 | 229 | 95 | 95 | 2.35 | 2.74 |
| 8 | 219.1 | 4 | 4.5 | 305 | 305 | 127 | 127 | 5.75 | 6.47 |
| 10 | 267.0 | 4.5 | 5.5 | 381 | 381 | 159 | 159 | 9.85 | 12.04 |
| 12 | 323.9 | 5.5 | 7.0 | 457 | 457 | 190 | 190 | 17.53 | 22.30 |
| SEAMLESS or SEAM WELDED | |||||||||
| 14 | 368.0 | 6.5 | 8.0 | 533 | 533 | 222 | 222 | 27.46 | 33.80 |
| 16 | 419.1 | 7 | 9.0 | 610 | 610 | 254 | 254 | 38.50 | 49.50 |
| SEAM WELDED | |||||||||
| 18 | 457.2 | 8 | 9.5 | 686 | 686 | 286 | 286 | 54.10 | 64.25 |
| 20 | 508.0 | 8.5 | 11.0 | 762 | 762 | 318 | 318 | 70.93 | 91.80 |
| 24 | 610.0 | 10.5 | 13.0 | 914 | 914 | 381 | 381 | 126.42 | 156.60 |
| 28 | 711.0 | 12 | 15.0 | 1067 | 1067 | 438 | 438 | 196.30 | 245.40 |
| 32 | 813.0 | 13.5 | 17.0 | 1219 | 1219 | 502 | 502 | 288.00 | 363.85 |
| 36 | 914.0 | 13.5 | 19.0 | 1372 | 1372 | 565 | 565 | 418.60 | 513.13 |
