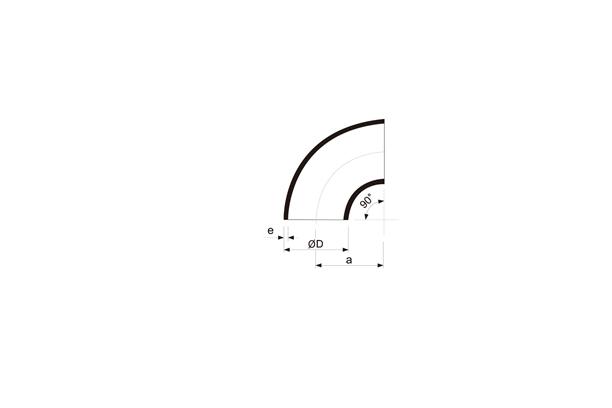

Elbows short radius 10 / 14 BAR (R~1D - 90º)
MATERIAL :
- NAVINIC 10® CuNi10Fe1Mn
- NAVINIC 30® CuNi30Mn1Fe
DIMENSION : Extrapolated from DIN 86090
| Outside diameter of pipe ØD | Wall thickness e mm | Radius a mm | Theoretical weight kg/piece | |
|---|---|---|---|---|
| nominal inch | actual mm | |||
| SEAMLESS | ||||
| 1 | 30.0 | 1.5 | 30 | 0.04 |
| 1 1/4 | 38.0 | 32.5 | 0.08 | |
| 1 1/2 | 44.5 | 40 | 0.12 | |
| 2 | 57.0 | 52.5 | 0.20 | |
| 2 1/2 | 76.1 | 2 | 70 | 0.44 |
| 3 | 88.9 | 82.5 | 0.64 | |
| ■ 2.5 | 0.80 | |||
| 4 | 108.0 | 2.5 | 100 | 1.16 |
| 5 | 133.0 | 125 | 1.80 | |
| ■ 3 | 2.16 | |||
| 6 | 159.0 | 2.5 | 150 | 2.60 |
| ■ 3 | 3.12 | |||
| 7 | 193.7 | 2.5 | 180 | 3.80 |
| ■ 3.5 | 5.32 | |||
| 8 | 219.1 | 3 | 210 | 6.00 |
| ■ 3.5 | 7.00 | |||
| SEAMLESS or SEAM WELDED | ||||
| 10 | 267.0 | 3 | 255 | 8.80 |
| ■ 4 | 11.74 | |||
| 12 | 323.9 | 4 | 305 | 17.20 |
| ■ 5 | 21.50 | |||
| 14 | 368.0 | 4 | 352.5 | 22.60 |
| ■ 5.5 | 31.08 | |||
| SEAM WELDED | ||||
| 16 | 419.1 | 4 | 400 | 32.80 |
| ■ 6 | 43.74 | |||
| 18 | 457.2 | 4 | 455 | 40.80 |
| ■ 6 | 61.20 | |||
| 20 | 508.0 | 4.5 | 505 | 56.20 |
| ■ 6.5 | 84.30 | |||
| 24 | 610.0 | 5 | 610 | 81.80 |
| ■ 8 | 130.90 | |||
