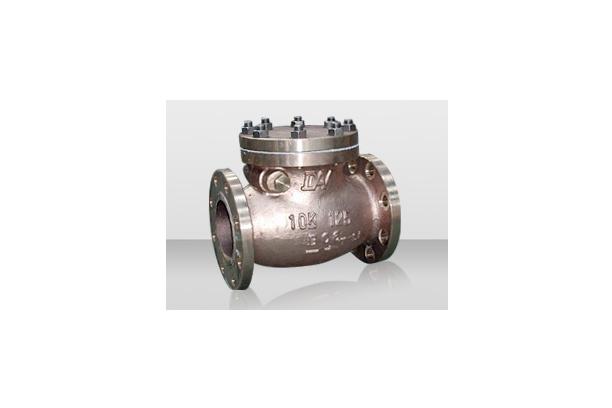

제품명	Swing Check Valve
크기	-
재질	Bronze / Cast iron / Cast Steel

제품특징

Cast iron & Cast steel : Swing check valves for marine use.

- Cast iron 5K - JIS F 7372     - Cast steel 5K - JIS F 7372

- Cast iron 10K - JIS F 7373     - Cast steel 10K - JIS F 7372

Pressure rating & test pressure(kgf/㎠)

FLUID CONDITION		RATING
		5K	10K
Saturated Steam		-	-
Oil and Pulsation Water		5	10
Non-Shock Water Up to 120℃		7	14
Test Pressure	Shell Test	10.5	21
	Seat Test	7.7	15.4

*Not specified high pressure. Please contact to business department

Basic Design

 End connection

- R.F Flanged ends(JIS B2210/ JIS B2220)
- F.F Flanged ends(JIS B2210/ JIS B2220)

제품규격

VALVE RATING	Position	VALVE SIZE
		50A	65A	80A	100A	125A	150A	200A	250A	300A
5K JIS F 7372 Ref. JIS F 7372	L	190	220	250	280	330	380	460	550	690
	H	110	135	145	165	190	215	255	310	385
	d	50	65	80	100	125	150	200	250	300
10K JIS F 7373 Ref. JIS F 7373	L	210	240	270	300	350	400	480	Note 1.
	H	125	145	155	170	200	225	265
	d	50	65	80	100	125	150	200

Note:

1. 명시되지 않은 규격은 제조업체 기준으로 함.

2. 대형 사이즈로 명시되지 않은 것에 대해서는 사업부로 연락을 바랍니다.
