Nominal
Pipe Size (NPS) | Outside Diameter | Center to End | Center to Center | End to End |

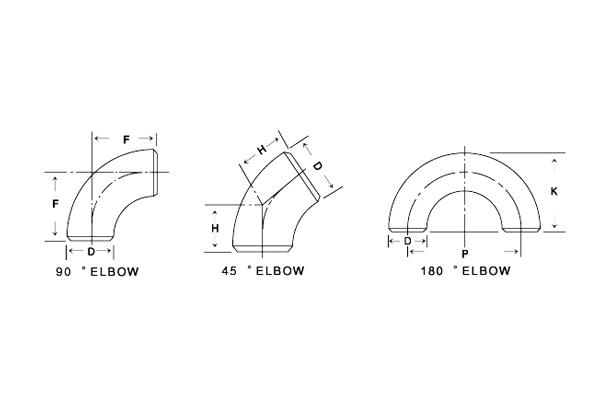

90˚Elbow(F) | 45 Elbow(H) | 180˚ Elbow (P) | 180˚ Elbow (K) |
A | B | D | Long | Shot | Long | Long | Shot | Long | Shot |
15
20
25
32
40
| ½
¾
1
1¼
1½
| 21.7
27.2
34.0
42.7
48.6
| 38.1
38.1
38.1
47.6
57.2
| -
-
25.4
31.8
38.1
| 15.8
15.8
15.8
19.7
23.7
| 76.2
76.2
76.2
95.2
114.4
| -
-
50.8
63.6
76.2
| 49.0
51.7
55.1
69.0
81.5
| -
-
42.4
53.2
62.4
|
50
65
80
90
100
| 2
2½
3
3½
4
| 60.5
76.3
89.1
101.6
114.3
| 76.2
95.3
114.3
133.4
152.4
| 50.8
63.5
76.2
88.9
101.6
| 31.6
39.5
47.3
55.3
63.1
| 152.4
190.6
228.6
266.8
304.8
| 101.6
127.0
152.4
177.8
203.2
| 106.5
133.5
158.9
184.2
209.6
| 81.1
101.7
120.8
139.7
158.8
|
125
150
200
250
300
| 5
6
8
10
12
| 139.8
165.2
216.3
267.4
318.5
| 190.5
228.6
304.8
381.0
457.2
| 127.0
152.4
203.2
254.0
304.8
| 78.9
94.7
126.3
157.8
189.4
| 381.0
457.2
609.6
762.0
914.4
| 254.0
304.8
406.4
508.0
609.6
| 260.4
311.2
413.0
514.7
616.5
| 196.9
235.0
311.4
387.7
464.1
|
350
400
450
500
550
600
| 14
16
18
20
22
24
| 355.6
406.4
457.2
508.0
558.8
609.6
| 533.4
609.6
685.8
762.0
838.2
914.4
| 355.6
406.4
457.2
508.0
558.8
609.6
| 220.9
252.5
284.1
315.6
347.2
378.7
| 1066.8
1219.2
-
-
-
-
| 711.2
812.8
-
-
-
-
| 711.2
812.8
-
-
-
-
| 533.4
609.6
-
-
-
-
|
650
700
750
800
850
900
950
| 26
28
30
32
34
36
38
| 98%.4
711.2
762.0
812.8
863.6
914.4
965.2
| 990.6
1066.8
1143.0
1219.2
1295.4
1371.6
1447.8
| 98%.4
711.2
762.0
812.8
863.6
914.4
965.2
| 410.3
441.9
473.4
505.0
536.6
568.1
599.7
| -
-
-
-
-
-
-
| -
-
-
-
-
-
-
| -
-
-
-
-
-
-
| -
-
-
-
-
-
-
|
1000
1050
1100
1150
1200
| 40
42
44
46
48
| 1016.0
1066.8
1117.6
1168.4
1219.2
| 1524.0
1600.2
1676.4
1752.6
1828.8
| 1016.0
1066.8
1117.6
1168.4
1219.2
| 631.2
662.8
694.4
725.9
757.5
| -
-
-
-
-
| -
-
-
-
-
| -
-
-
-
-
| -
-
-
-
- |
