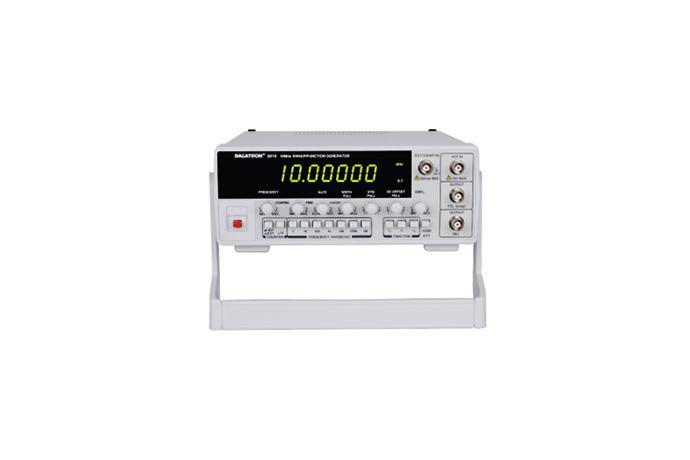

DAGATRONICS Function Generator



MODEL 8210 8205 8203/8202
Output Characteristics Waveforms Sine,Square,Triangle,Ramp,Pulse,Sawtooth,TTL Leveled Squery  (CMOS 8203/8202 only)
Frequency
Range
0.1 Hz to 10 MHz   in 7 Range  0.05 Hz to 5 MHz
in 7 Range
0.03 Hz to 3 MHz
in Range(8203)
0.02 Hz to 2MHz
in 7 ranges(8202)
Frequency
Accuracy
2% of full scale
Output Level 2% Vp-p in Open circult, 10 Vp-p into 50 Ω Load
Output
Impedance
50Ω ± 5%
Attenuator  20 dB fixed and continuouly variable
DC Offset Control  More than ±5V (into 50ohm)
Waveform
Characerisics
Sine wave  Flatness: ±3 dB to Maximum Output, Distortion:Less than 1% at 10Hz to 100KHz
Square wave  Rise and Fall Time:Less than 120 nS at 1MHz
Triangle
wave
Linearity:More than 99% at0.2 Hz 100kHz
TTL
Output
Rise and Fall time : Less than 25nS at 1MHz
Output Level:TTL Level(H ≥ 2.4 V.Ls 0.4 V)
CMOS Output
(8203,8202 only)
Rise and Fall time : Less than 160 nS
Output Level:4V to 15V ≥ 1V, Variable
Symmery
Variation
1:1 to 10:1
Sweep Function
  Characteristics
Mode  Linear
Width Variable from 1:1 to 100:1
Rate 0.5 Hz to 50 Hz(20 mS to 2 S)
Extemal VCF input  Input Voltage:0 to, Input Impedance:Approx 1kohm
Frequency Conuter
Characeristics
Display 7 digits Green LED  6 digits Green LED
Frequency
Range
0.2 Hz to 100MHz  0.2 Hz to 50 MHz
Acuracy ± Timebase Error ± 1 count
Low pass
Filter
Approx, -3 dB, 100kHz
Timebase 10 MHZ x-TAL, ± 20PPM
Input Sensitivity  100mVrms
Max,
Input Voltage
48 Vp-p
General  Power Requirement  115 or 230 VAC ± 10%, 48 to 66Hz
Operationg
Temperature
0 to 50º C ( Acuracy spcified at 23 ± 5ºC )
Dimension  240(W) x 270 (D) x 90(H) mm
Weight Approx, 3kg  Approx, 2kg
Standard
Accessories
Power Cord, BNC Cable, Fuse, Instruction Manual
