Auto Strainer, GRAM

모델명

시리즈

Medical Device


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


031-916-8005

제품 상세 설명

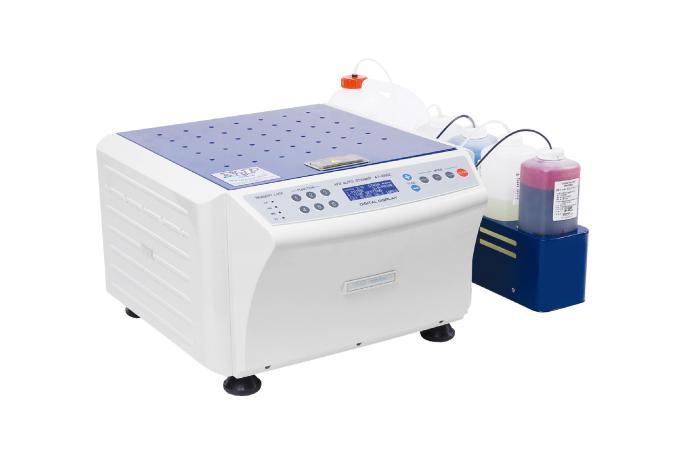

DAGATRONICS Auto Strainer, GRAM AT-2000G



AT-2000GGRAM Stainer
Slide Try Capacity   1 slide ~10 slides(1 to 20 slides by adding Optional Tray)
Tray Rotation Speed   Approx, 6RPM (Stain Mode) / Approx, 200RPM(DRY Mode)
Display  4 Line by 20 character alpha-numeric LCD dot-matrix
Key Button Controls   6 Mode Key(Stain, Prime, Clean, Dry, Reset, Slide up/down)  6 Function selection
Used Reagent / Consumption(Typical)    Crystal Violet / Gram-lodine / Acetone Alcohol / Safranine 1.2ml~1.8ml
1 Cycle Stain time(Typical)   10 slides : 13 min. / 20 slides: 18 min.(Option)
Dimensions   480(W) x 445(D) x 265(H)mm. ClearanceHeight(Lid open): Max. 565mm
Weight   Approx. 17 kgs
Electrical Requirements   100~240VAC~(Auto selection)@50 to 60 Hz
Power Consumption   Max.50 Watts
Drain Connection   Nipple on rear Panel
Safety   Lid interlock : Lid must be closed, andis locked down during operation
Standard Accessies   1L Reagent Bottle(1set), 5L Waterbottle(1), Reagent Container(1) Reagent Container cable(1), Powercord(1), Drain hose(1) Ragent connection Tube(1 set), User'smanual(1) Quick installation and user's guide(1),Spare fuse(1), Carbon filer(5)
Optional Accessaries   Additional slide for 10 slides
